Theatrixx XLR5 DMX/RDM Splitter Reversible Module

Description

Theatrixx XLR5 DMX/RDM Splitter Reversible Module

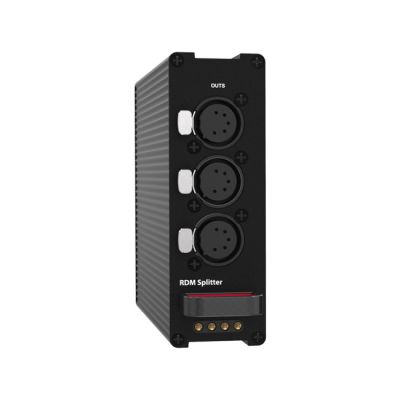

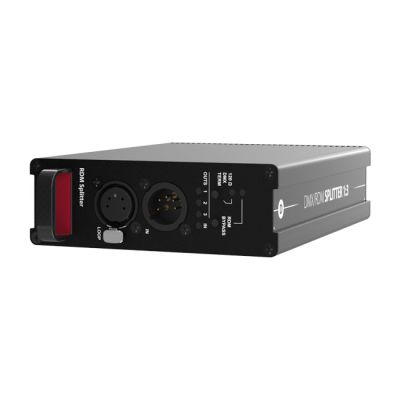

The DMX/RDM Splitter – XLR5 Reversible Module fits in the 8-Bay Reversible Rackmount Converter system. The DMX/RDM Splitter is a high quality, rugged distribution device for your DMX-512 and RDM signals. The input and each output are optically isolated up to 1000 volts, ensuring line failures are contained and do not take down the whole network. RDM data is forwarded to each port, and a special “Timing Safe Mode” bypasses RDM transmission and boosts the DMX signal quality to ensure compatibility with older-generation fixtures. It is also a handy troubleshooting feature that can be easily switched on or off at the push of a button. Available in both traditionally 1RU, 8 channel form factor, or as a modular, 3 channel unit compatible with Theatrixx’s Award-Winning 8-Bay Reversible Converter System, the product opens up interesting possibilities for high-universe count, high density configurations. For maximal compatibility, the device is offered with a choice of 3-pin or 5-pin XLR connectors.
