Theatrixx XLR-3 DMX/RDM Splitter Reversible Module

Description

Theatrixx XLR-3 DMX/RDM Splitter Reversible Module

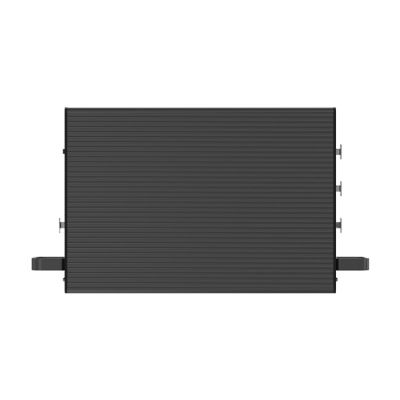

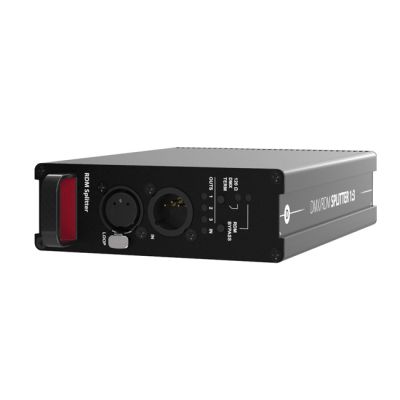

The Theatrixx XVVRM-OPTO3 is a XLR-3 DMX/RDM Splitter Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system.

The DMX/RDM Splitter is a high quality, rugged distribution device for your DMX-512 and RDM signals. The input and each output are optically isolated up to 1000 volts, ensuring line failures are contained and do not take down the whole network. RDM data is forwarded to each port, and a special Timing Safe Mode bypasses RDM transmitting and boosts the DMX signal quality to ensure compatibility with older- generation fixtures.

It is also a handy troubleshooting feature that can be easily switched on or off at the push of a button. Available as a modular, 3 channel unit compatible with Theatrixx’s Award-Winning 8-Bay Reversible Converter System, the product opens up interesting possibilities for high-universe count, high density configurations. For maximal compatibility, the device is offered with a 3-pin XLR connectors.

Specifications:

Connections

Input: 1x 3-pin XLR male

Loop-thru: 1x 3-pin XLR female

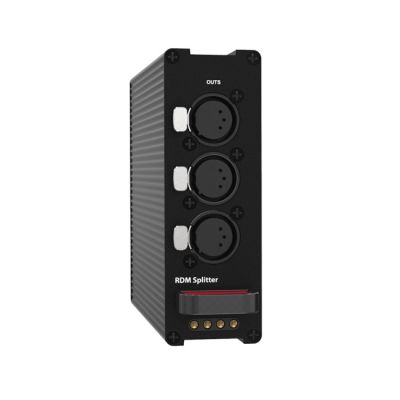

Isolated Output: 3x 3-pin XLR female

Supported Signals

DMX Termination: Switchable on/off

RDM Support: Yes

RDM Bypass: Switchable on/off

Port Isolation Voltage: Up to 1kV

Timing Safe Mode: 33 FPS, 512 Slots, 88uS Break, 44 us MAB

Physical

Dimensions (HxDxW): 4.78 x 8.85 x 1.61″ (121.5 x 225 x 41mm)

Weight: 1.56Lbs (710g)

Alternate Form Factor: Also available as a standalone converter

Environmental

Relative Humidity: 0% to 90% non-condensing

Operating Temperature: 32° to 104°F (0° to 40°C)

Power Requirements

Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)

Power Consumption: 20W

Voltage Range: 12VDC

Item Includes:

1x Theatrixx XVVRM-OPTO3 Reversible Module – DMX Splitter/Isolator 1:3 + Thru – RDM – XLR3
