Theatrixx SDI Audio De-Embedder Reversible Module

Theatrixx SDI Audio De-Embedder Reversible Module

SKU: Theatrixx-XVVRM-SDI2AUDIO Categories: , , ,

$599.00

Description

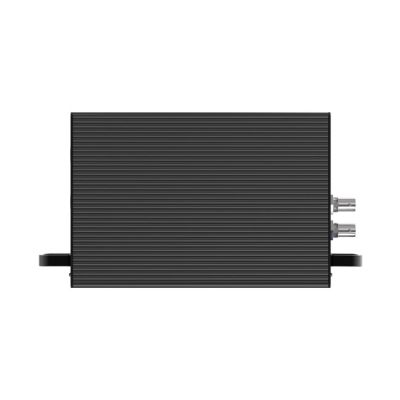

Theatrixx SDI Audio De-Embedder Reversible Module

The SDI Audio De-Embedder Reversible Module fits in the 8-BayReversible Rackmount Converter system.

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Ā

Specifications

Connections

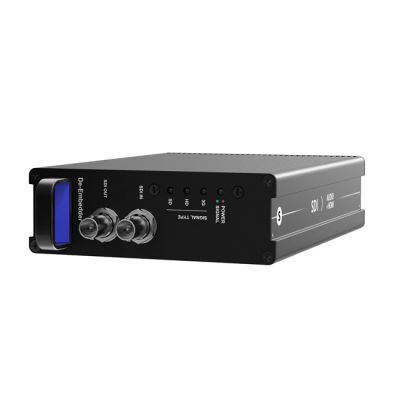

Video Input: 1 x 3G/HD/SD SDI BNC

Loop-thru: 1 x 3G/HD/SD SDI BNC

Video Output: 1 x HDMI 1.2 type A with locking system

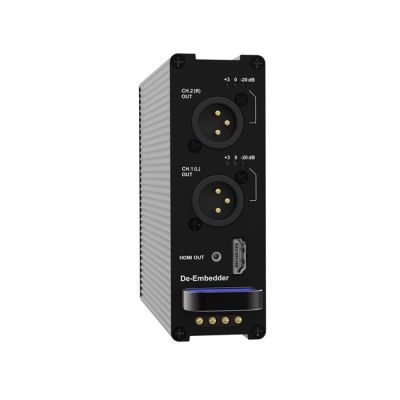

Audio Output

2 x Balanced + 4dB XLR (analog) each with a
3-segment LED meter

Supported Signals

3G Format Support: 1080p50, 1080p59.94, 1080p60

HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30

SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL

SDI Video Sampling: 4:2:2 and 4:4:4

SDI Audio Sampling: Sample rate of 48 kHz and 24 bit

SDI Color Space: YUV and RGB

SDI Auto Switching: Automatically detects incoming signal format

De-embedding: SDI Channels 1 & 2

SMPTE Standards: 425ā€‰M Level A & B, 424ā€‰M Level A, 292ā€‰M, 259ā€‰M

Physical

Height: 121.5ā€‰mm (4.78ā€‰in)

Depth: 225ā€‰mm (8.85ā€‰in)

Width: 41ā€‰mm (1.61ā€‰in)

Weight: 710ā€‰g (1.56ā€‰lbs)

Alternate Form Factor: Also available as a standalone converter

Environmental

Relative Humidity: 0% to 90% non-condensing

Operating Temperature: 0-40 Ā°C

Power Requirements

Power Supply: Reversible redundant power fed by TXVV-RF8 (8-Bay Rackmount Frame)

Power Consumption: 20W

Voltage Range: 12VDC

In the box

Theatrixx Reversible Module SDI Audio De-Embedder

Additional information

Weight4 kg
