Theatrixx HDMI to SDI Reversible Module

Description

Theatrixx HDMI to SDI Reversible Module

The HDMI to SDI Rack Module is a unit option for the 8-Bay Reversible Rackmount Converter system.

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Specifications

Connections

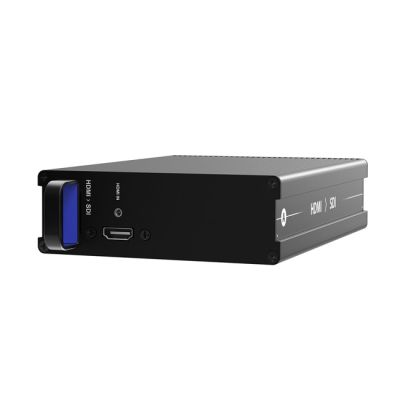

Video Input: 1 x HDMI 1.2 type A with locking system

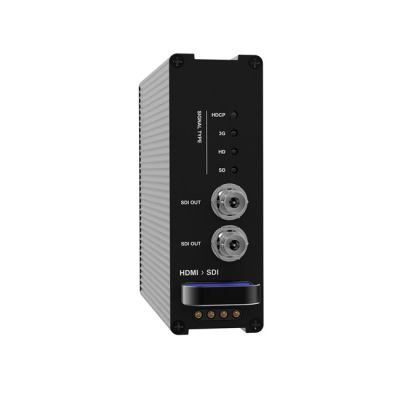

Video Output: 2 x 3G/HD/SD SDI BNC

Supported Signals

3G Format Support: 1080p50, 1080p59.94, 1080p60

HD Format Support: 720p50, 720p59.94, 720p60, 1080i50,1080i59.94, 1080i60, 1080p23.98,1080PsF23.98, 1080p24, 1080PsF24, 1080p25,
1080PsF25, 1080p29.97, 1080PsF29.97,1080p30, 1080PsF30

SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL

SDI Video Sampling: 4:2:2 and 4:4:4

SDI Audio Sampling: Sample rate of 48kHz and 24 bit

SDI Color Space: YUV and RGB

SDI Auto Switching: Automatically detects incoming signal format

SMPTE Standards: 425 M Level A & B, 424 M Level A, 292 M, 259 M

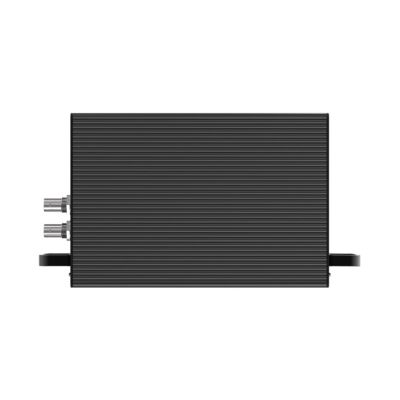

Physical

Height: 121.5 mm (4.78 in)

Depth: 225 mm (8.85 in)

Width: 41 mm (1.61 in)

Weight: 710 g (1.56 lbs)

Alternate Form Factor: Also available as a standalone converter

Environmental

Relative Humidity: 0% to 90% non-condensing

Operating Temperature: 0-40 °C

Power Requirements

Power Supply: Reversible redundant power fed by XVVRF8
(8-Bay Rackmount Frame)

Power Consumption: 20W

Voltage Range: 12VDC

In the box

Theatrixx Reversible Module HDMI to SDI
