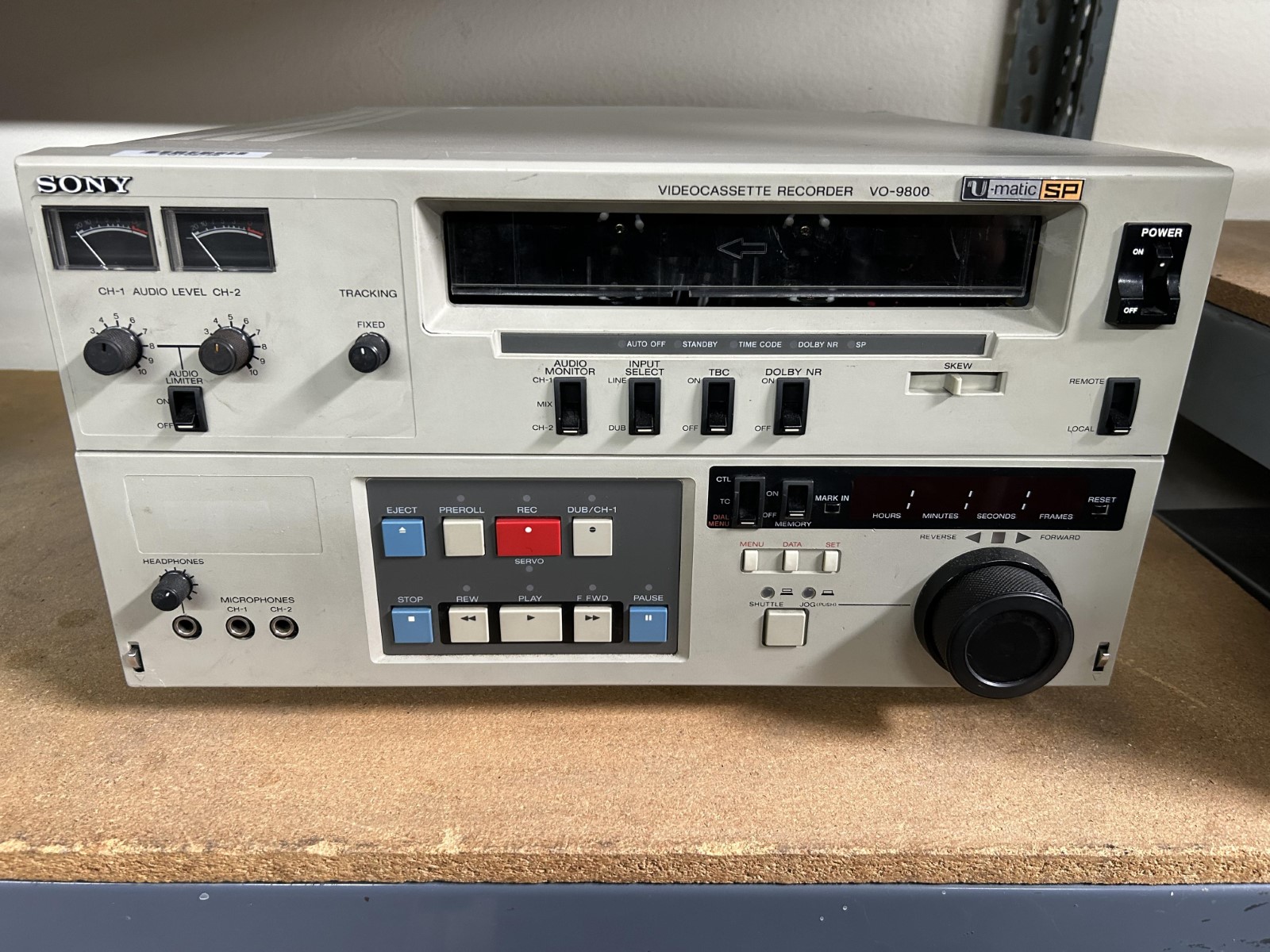

Sony VO-9800

Description

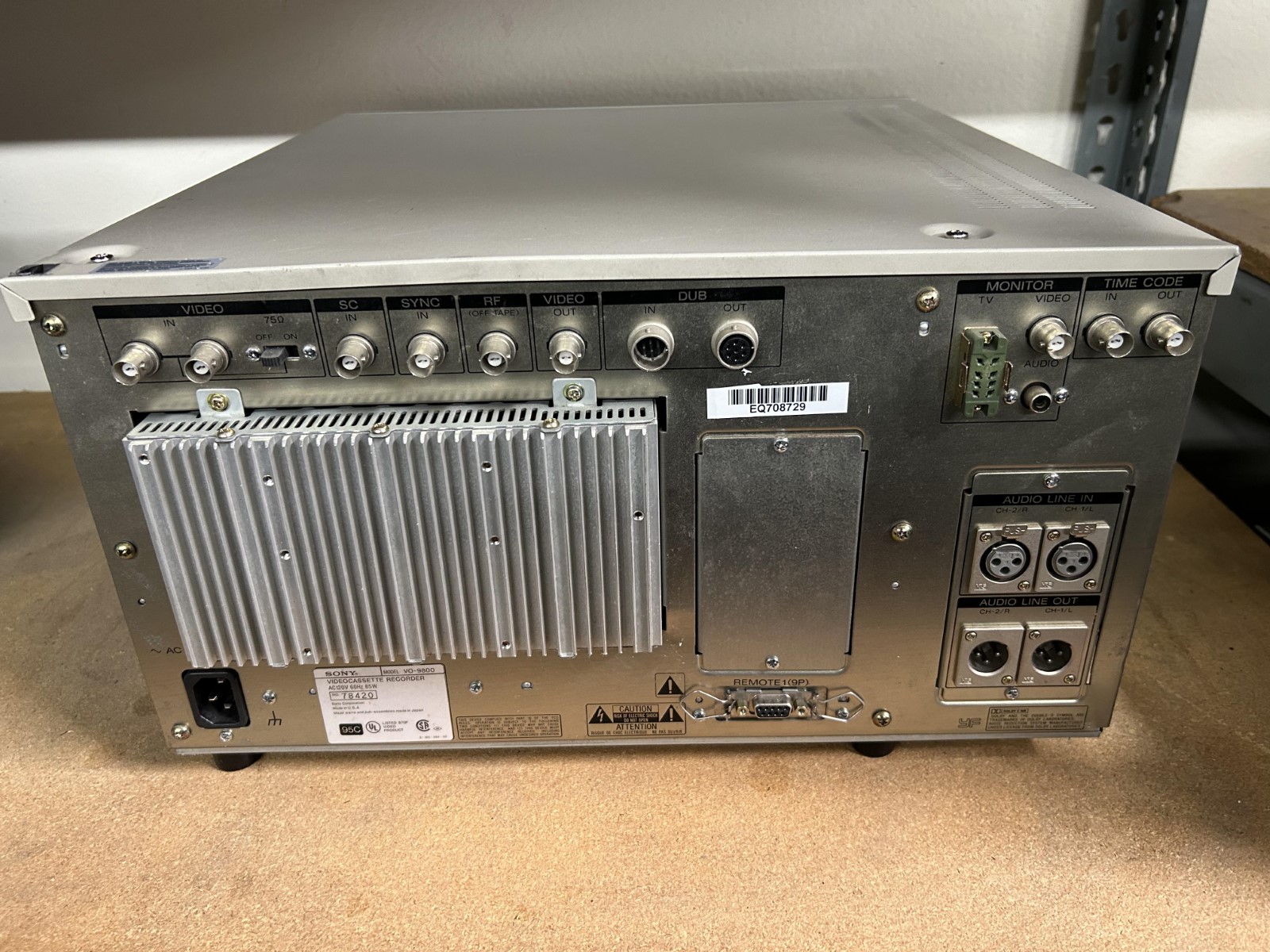

U-matic Videocassette recorder, type IX SP with Type-C Dolby noise reduction,9-pin RS-422 serial interface, optional 33-pin parallel interface with BKU-703A, optional time code reader capability with BKU-704, TBC connection, Jog/Shuttle dial operation +/- x1/30 to x8, Dial Menu Operation, dubbing connectors, balanced audio with XLR connectors, 8 digit LED counter. 5 Rack Units High.
Features:
Complete interchangeability between SP and Conventional U-matic
• SP Mode Automatic Detection System
• Dolby C-Type Noise Reduction System
• XLR Connectors
• 9-pin REMOTE Connector (RS-422 serial interface)
• High Speed Picture Search
• Back Space Editing Capability
• Improves the S/N ratio to 72db and works only in SP recording/playback modes.
• Smooth transitions between scenes
• The search dial offer various speeds from still up to 8 times normal speed in both the forward and reverse directions.
• Power Requirements: AC 120V, 50/60Hz
• Operating Voltage: AC 90-132V
• Power Consumption: 85W (with BKU-703, BKU-704, and RM-440)
• Input: 0dB6dB, 10k ohms, balanced
• Output: Line: +4dBm (at 600 ohms), balancedHeadphone: -26dB~-46dB (at 8ohms), unbalancedMonitor: -5dB (at 47k ohms), unbalanced
• Frequency Response: 50Hz~15kHz
• Wow and Flutter: less than 18% rms
• Videocassette: Sony KSP, KSP-S, KCA-BRS, KCS-BRS, KCA-XBR, KCS-XBR, series or equivalent
• RF OUT (OFF TAPE): 0.5V (0.3~1.0V)p-p,75, unbalanced
• Operating temperature: 5 to 40oC (41 to 104oF)
• Recording and playback time: 60 min.
• Fast forward time: Less than 4 min (with SONY KSP-60 U-matic videocassette)
• Rewind time: Less than 4 min (with SONY KSP-60 U-matic videocassette
• Search Speed: SHUTTLE mode: Still, 1/30, 1/10, 1/5, 1/2, 1,2,5,8 times normal speed in the forward and reverse directions
• Video recording system: Rotary 2-head helical scan systemLuminance: FM recordingChrominance: SC low-range conversion recording
• Dubbing input: 7-pin x 1
• Dubbing output: 7-pin x 1
• Horizontal resolution: SP mode: 330 lines (color/monochrome)Conventional mode: 250 lines (color/monochrome)
• S/N ratio: SP mode: Better than 52dB (3% distortion without Dolby NR)
• EXT SYNC IN: 2.5V (1.0~5.0V)p-p, negative, 75, unbalanced
• SC In: 1.0V (0.5~3.0V)p-p,75, unbalanced
• Distortion: Less than 2%
• Input: Line: +4dB, 10k ohms, balancedMicrophone: -60dB, 3k ohms, unbalanced
• Input: NTSC composite video, 1.0Vp-p 3V, sync negative, 75, unbalanced
• Input: 0dB6dB, 10k ohms, balanced
• Output: Line: +4dBm (at 600 ohms), balancedHeadphone: -26dB~-46dB (at 8ohms), unbalancedMonitor: -5dB (at 47k ohms), unbalanced
• Output: NTSC composite video, 1.0Vp-p, 0.2V, sync negative, 75, unbalanced
• S/N ratio: SP mode: Better than 52dB (3% distortion without Dolby NR)S/N ratio: SP mode: better than 46dB (color) better than 48dB (monochrome)Conventional mode: Better than 48dB (color)
• Output: 0dB3dB, low impedance, unbalanced (0db=1.55Vp-p pulse)
