Description

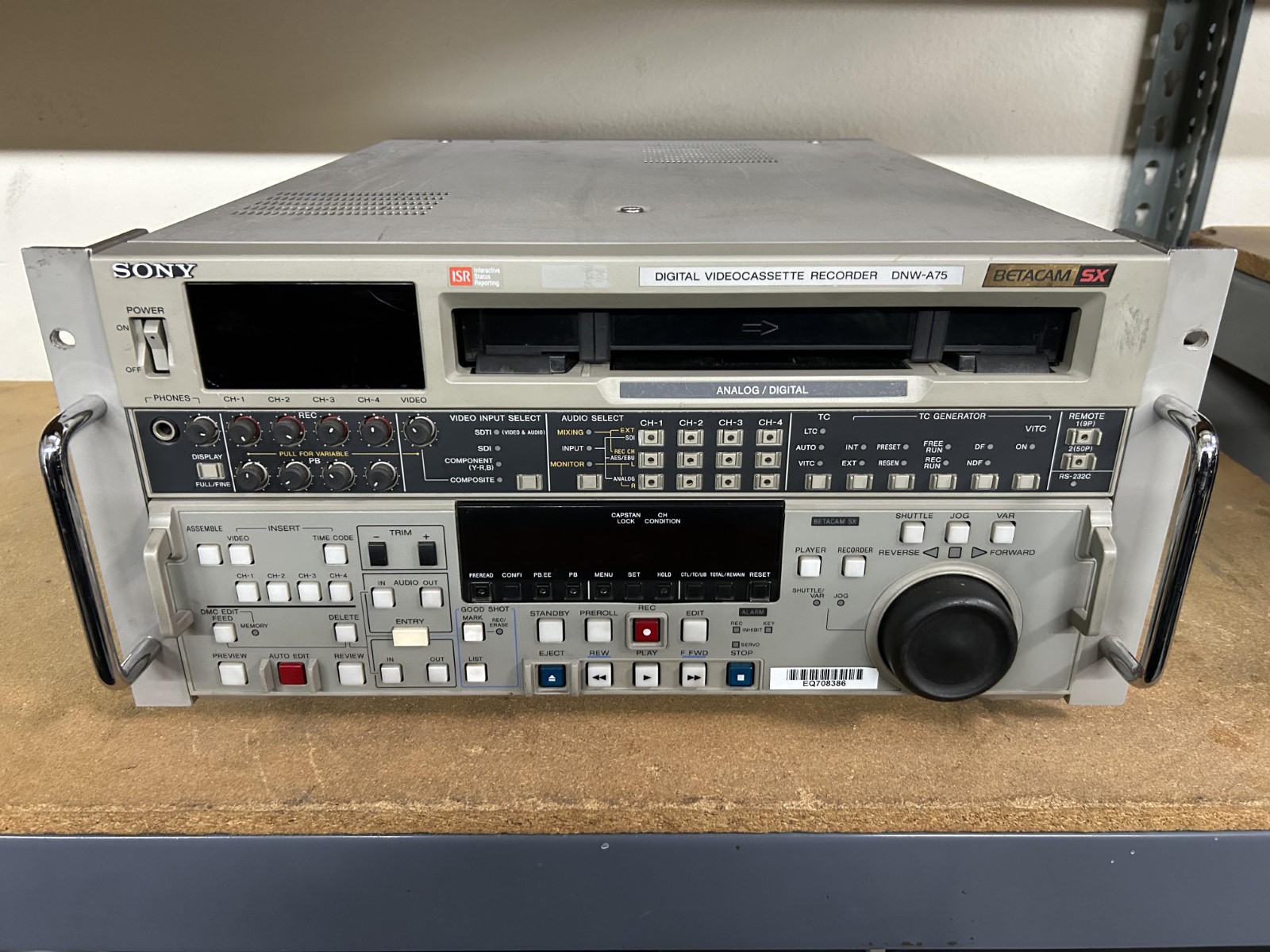

DNWA75 Betacam SX studio editing recorder/player with analog Betacam/Betacam SP playback, pre-read editing capabilities, and option for direct MPEG-2 stream I/O via SDTI. A remote front-panel option allows convenient and flexible machine operation and analog component and composite I/O are standard. Can be operated in 525 or 625 modes.
Features:
Betacam SX Record/Playback: High-quality video at very low bit-rates and four channels of audio at full bit-rate.
Frame-Accurate Video/Audio Insert Editing: Fast, linear editing operations with familiar operating characteristics.
Pre-read Editing: Allows simple A/B roll effects using only two machines.
525/625 Operation: Operates in either NTSC or PAL modes for international compatibility.
Variable Playback: -1/+2 playback range with Dynamic Motion Control.
SDTI or MPEG2 Digital Output Options: Allows transfer of compressed digital signals, minimizing subsequent decode/encode processes.
Dynamic Tracking: -1/+3 variable range with Dynamic Motion Control.
Specifications:

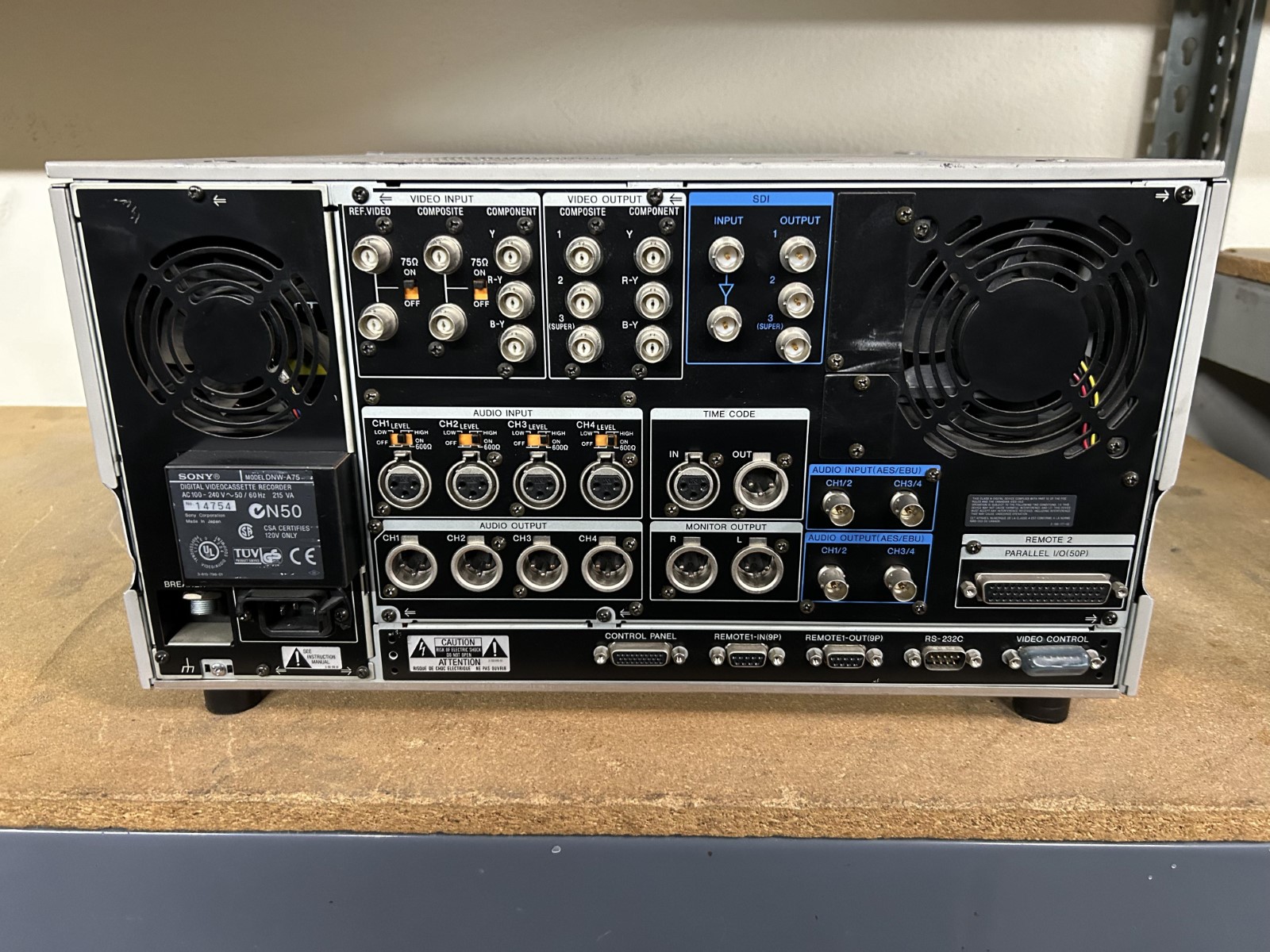

Inputs/Outputs – SDI, embedded 4-channel audio with super impose – AES/EBU audio (4 channels) – Analog audio (4 channels) – (2) 9-pin RS-422 remote control
Size – 5 Rack Units
Weight – 67 lbs.
Power – 100-220V AC 50/60Hz, 220W
Additional Detailed Information:
Product Highlights
Frame-Accurate Video/Audio Insert Editing
Pre-read Editing
525/625 Operation
Variable Playback
Good Shot Marker Support
SDTI or MPEG2 Digital Output Options
Remote Front-Panel Option
Betacam SP Playback
Dynamic Tracking
NTSC/PAL Viewing Capability
Four-Channel Audio Playback
