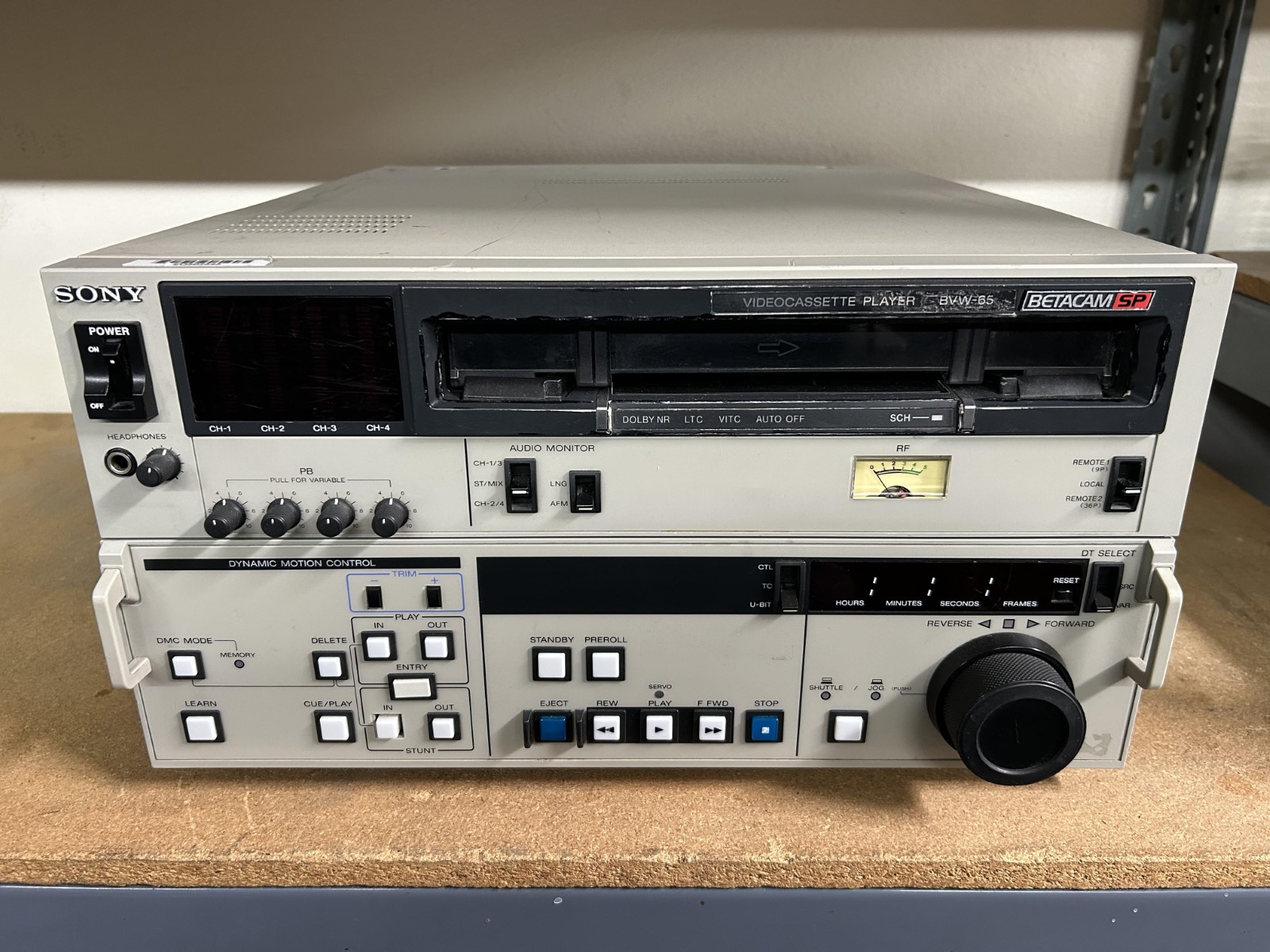

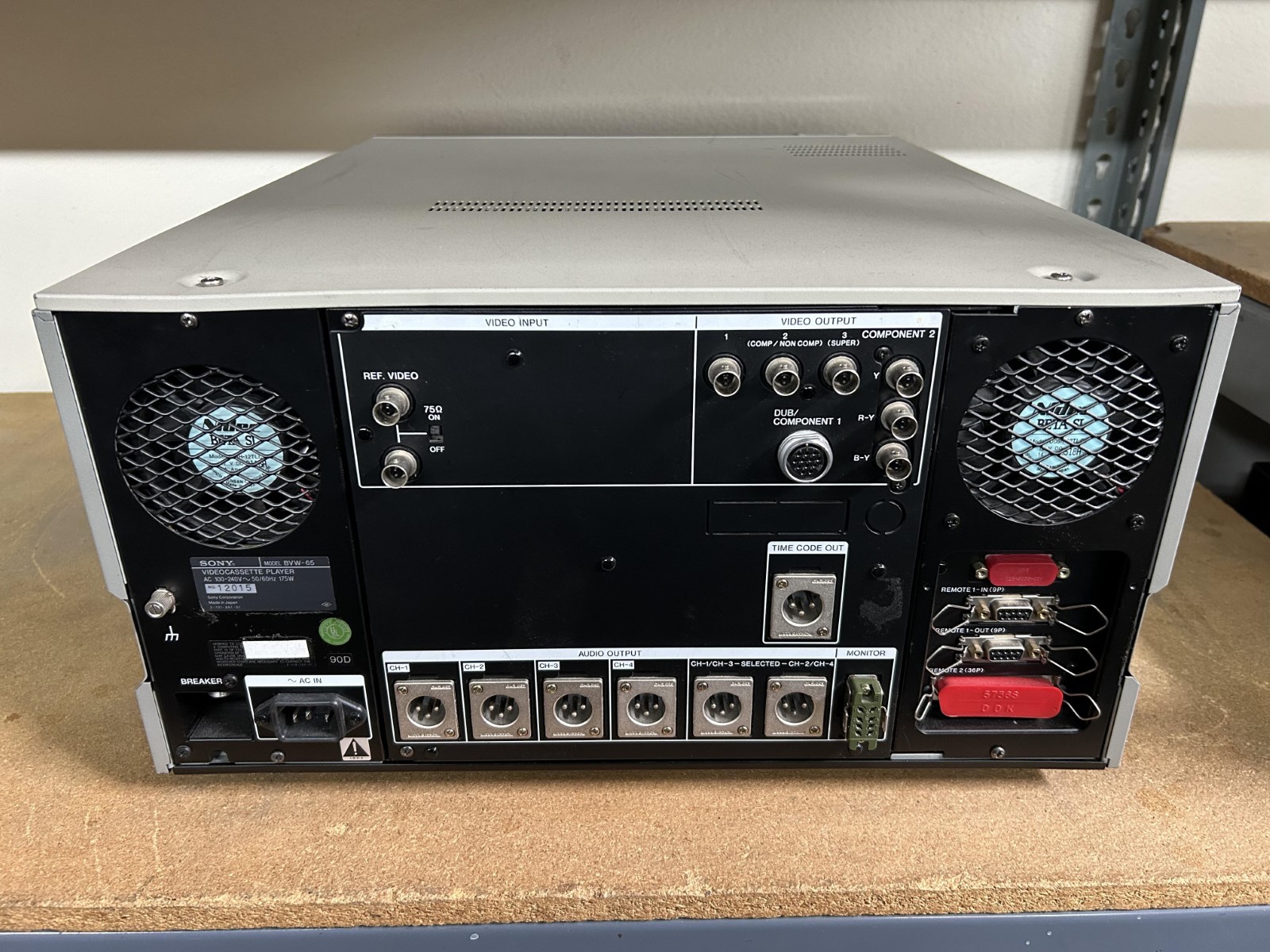

Sony BVW-65

Description

Betacam SP studio DT player.Features:dynamic tracking -1 to +2 times normal speed, 90 minute playback, built-in TBC, 4 audio channels, metal particle/oxide tape, DMC playback memory, time code reader for LTC, VITC, U-Bits, superimpose time code/operation mode, set-up menu, capstan override function from front panel.

Features:
Superior Picture Quality
Longer Operating Time
Multiple Audio Channels
Dynamic Motion Control (DMC) Playback
Character Display
Audio System
Capstan Override
Improved Serviceability
The BVW-65 will playback the superior picture quality which has become a reality with the adoption of the Betacam SP recording format and the use of metal particle tape.
In addition to the two conventional longitudinal audio channels, two AFM audio channels are added, making a total of four channels available.
For easy maintenance and service, the BVW-65 is provided with comprehensive self-diagnostics.
The BVW-65 is equipped with Dynamic Motion Control Playback for stable, glitch-free operation over a wide range of speeds.
The BVW-65 will provide a maximum playback time of over 90 minutes of material recorded on L-size cassettes.
The BVW-65 is provided with a built-in character generator and characters can be superimposed via Video Output 3.
The BVW-65 plays back a total of four channels of audio input and each channel of the audio level can be adjusted separately.
Normal tape speed can be varied by ±16% by using the search dial or by ±8% by using the TRIM buttons during the playback mode.
Humidity: less than 80% (relative humidity)
Lock up time: 0.6s or less (from standby on)
Power requirements: AC 90 to 265V, 48Hz to 64Hz
Operating temperature: 5°C to 40°C (41°F to 104°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Power consumption: 375VA(175W)
Tape speed: 11.86cm/sec.
Playback time: More than 90 min.(BCT-90ML), more than 30min.(BCT-30M)
Fast forward/rewind: Less than 180 sec. with BCT-90ML
Search speed (shuttle mode): STILL, 1/30, 1/10, 1/5, 1/2, 1, 2, 5, and 24 times normal speed, forward and reverseVAR -1,-1/2, -1/5, -1/10, -1/30, STILL, 1/30, 1/10, 1/5, 1/2, 1, and 2 times normal speedJOG, Frame by frame, forward and reverse
Dynamic tracking range (variable mode): -1 to +2 times normal speed
