Salrayworks MT-PT60B Indoor Pan/Tilt Head

Description

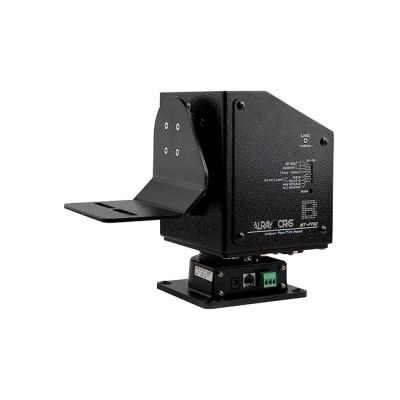

Salrayworks MT-PT60B Indoor Pan/Tilt Head

The ROBOTIC PAN/TILT HEAD and Controller from Salrayworks is designed for hand-held cameras and max 10 Kg like BMD’S URSA Broadcast with specific anti-backlash allowance for all precision gear products and high-quality mechanical components. A rugged PAN/TILT head is one that’s designed specifically to operate reliably in a harsh indoor environment. That could be an environment that’s subject to lots of vibration, extreme temperatures or dust conditions. The head can be mounted on a tripod or on a wall, ceiling, or surface.

The Pan/Tilt head enables shooters to choose the most suitable camera and lens for their production.  You can remotely control the using LANC protocol (SONY, CANNON, JVC, Black-Magic Design)

Indoor Pan/Tilt Head Payload 5Kg ( LANC Type: SONY, CANNON, JVC, Black-Magic Micro Studio Camera 4K only  compatible )

In Black Magic Studio Camera case, support below lens series ( Panasonic Lumix G X Vario PZ 14-42mm f/3.5-5.6 Power O.I.S. Lens, Panasonic Lumix G X Vario PZ 45-175mm f/4.0-175mmf/4.0-5.6 zoom O.I.S. Lens, Olympus 12-50mm f/3.5-6.3 ED M ZUIKO EZ Micro4/3 Lens, Olympus 14-42 M. Zuiko f/3.5-5.6 Digital ED EZ Lens, VISCA Supports ( NEW VISCA BOARD )

Key Features

• Remote PAN/TILT at 3 step (Slow, Mid, Fast) PAN / TILT Speed
• Truly Silence Operation
• Support up-to 22 Ib ( 10Kg )
• Max 4 Camera Controllable at one Controller.
• PUSH, ZOOM, FOCUS, IRIS Controllable in MT-TX 80 Controller.
• Complete SONY, CANNON /Broadcast hand-held Camera CCU (Iris, black level color balance, shutter speed, gain etc ) controllable in MT-TX 90 Controller.
• Remote Control distance: Max 1.3 mile
• Pan 0° to 350° and Tilt -45°to ±45°
• Support VISCA / PELCO-D

Interfaces

Video Connectors

          – 1 x BNC (3G-SDI) Output

          – 1 x HDMI (HDMI 2.0) Output

Audio Connectors

          – 1 x 1/8” / 3.5 mm Stereo Mic Level Input

          – 1 x 1/8” / 3.5 mm Stereo Headphone Output

Other I/O

          – 1 x USB Type-C Camera Interface, USB 3.1 Gen 1 Data, Control, Video Input

          – 1 x BNC Timecode Data Input/Output

          – 1 x BNC Genlock Data Input/Output

          – 1 x RJ45 LAN Control. Monitor, Video Input/Output

          – 1 x 2.5 mm LANC Control Input
