Description

NewBlue Fusion 3 NDI

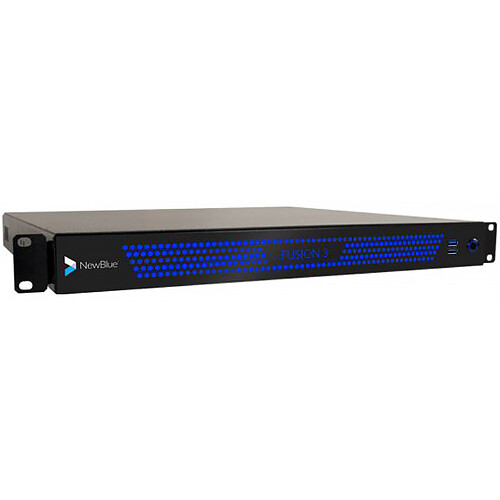

NewBlue Fusion 3 Extreme 1U short-depth turnkey appliance

• Small form-factor 1U (1.75″) rack height, 10-inch deep chassis
• Removable top cover for access to all internal components
• Front mounting hardware included

Power Supply

300 Watt power supply

Motherboard

Gigabyte A620I AX – Mini ITX, Socket AM5

Processor

AMD- Ryzen 5 7600 Series 6-Core 3.8 GHz Socket AM5 65W AMD Radeon Graphics Processor

Memory

32GB DDR5 4800 MHz RAM (non-ECC) (16GB x 2 DIMM dual-channel configuration)

Storage

1 x 500GB Western Digital Blue SN550 series M.2 2280 NVMe 1.3 PCI Express 3.0 x4 SSD

Operating System

Windows 11 Pro 64-bit

Video

AMD RadeonTM Graphics, 2 GPU cores, 2200MHz

Expansion Slots

Slot 1- PCI Express 3.0 x16 (x16 electrical)

Ports

1 x DisplayPort

1 x HDMI port

1 x USB Type-C® port, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 2 Type-A port (red)

1 x USB 3.2 Gen 1 port

3 x USB 2.0/1.1 ports

1 x Q-Flash Plus button

1 x RJ-45 port

2 x SMA antenna connectors (2T2R)

3 x audio jacks

Audio

Realtek® ALC887 codec High Definition Audio codec 2/4/5.1/7.1-channel None

Warranty

1 Year Manufacturer’s Warranty
