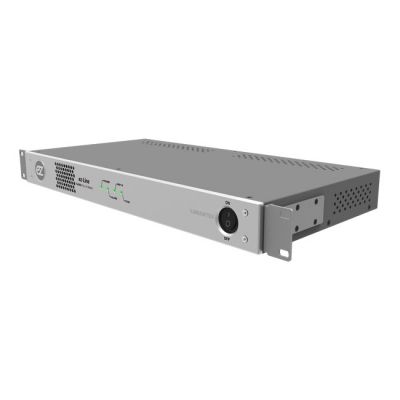

Lumantek VM16 ez-Line 16×16 Router

Description

Lumantek VM16 ez-Line 16×16 Router

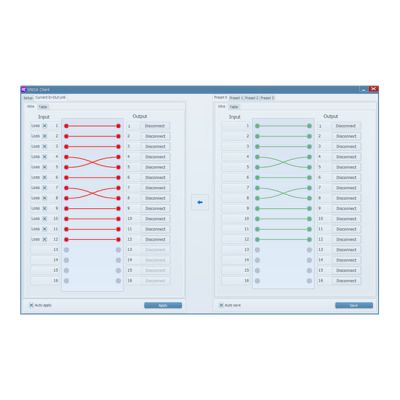

ez-Line (HD-SDI 16 x 16 Router) supports the standard HD-SDI signal and can configure HD broadcast signal input/output. Through this unit user can send sharp and clear signals. In addition to this, user can utilize this device function and use variety purposes such as splitter and selector.

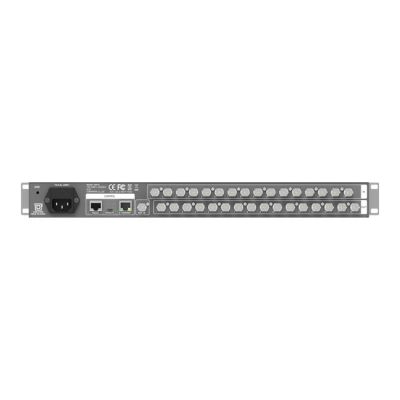

Input

• SDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x16

• Reference Input: B.B , TRI (BNC 75Ω ) x1

Output

• HD-SDI: SD/HD/3G-SDI (BNC 75Ω) x16Connections

• Remote Control: RS-422 (RJ45)x1

• Ethernet: Ethernet Support (RJ45)x1

• Update: Debug (Micro-USB)x1

Electrical

• Power Input: 100~240VAC @ 50/60Hz

• Power Consumption: 18W(max.)

• Operation Temperature: 0~40℃

Physical

• Dimension: 44(H) X 483(W) X 240(D)

• Weight: 2.0 kg
