Description

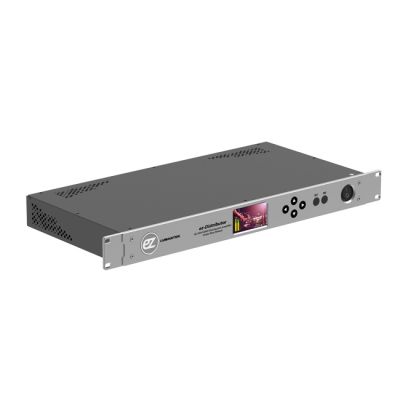

Lumantek Distribution Amplifier with LCD Monitoring (12xSDI / 2xHDMI Outputs)
LUMANTEK’sĀ NEW ez-Distributor is a 14 channel distributor in 1RU size. It has 1 x HDMI and 1 x 3G-SDI input, and 2 x HDMI outputs and 12 x 3G-SDI outputs. You can embed external audio and de-embed incoming video audio. With the LCD screen, it is very easy to monitor what is being played through the distributor.Ā
System Specifications
Data Input
SDI Video Input: SD/HD/3G-SDI (BNC 75Ī©) x1 HDMI Video Input: SD/HD/3G (HDMI Type A) x1
Video Formats
– 720x480i@59.94/60
– 720x576i@50
– 1280x720p@50/59.94/60
– 1920x1080i@50/59.94/60
– 1920x1080p@23.94/24/25/29.97/30 – 1920x1080p@50/59.94/60
Audio Input
XLR (Female) x2
Data Output
SDI Video Output: SD/HD/3G-SDI (BNC 75Ī©) x12 HDMI Video Output: SD/HD/3G (HDMI Type A) x2
Video Formats
– 720x480i@59.94/60
– 720x576i@50
– 1280x720p@50/59.94/60
– 1920x1080i@50/59.94/60
– 1920x1080p@23.94/24/25/29.97/30 – 1920x1080p@50/59.94/60
Audio Output
XLR (Male) x2
Connections
Update : Debug (Micro-USB)x1
Display
2.7 inch TFT LCD : Input Video Display(SDI or HDMI), AUDIO Level Meter Display, Input Video Resolution Display
Electrical
Power Input: 100~240VAC @ 50/60Hz Power Consumption: 10W(max.) Operation Temperature: 0~45 C
NEW
Physical
Dimension: 44(H) X 478(W) X 226(D) Weight: 3 kg
