Description
Lumantek DSK Live CG Generator (USB 3-Type Overlay)
Note: This product is Windows only.

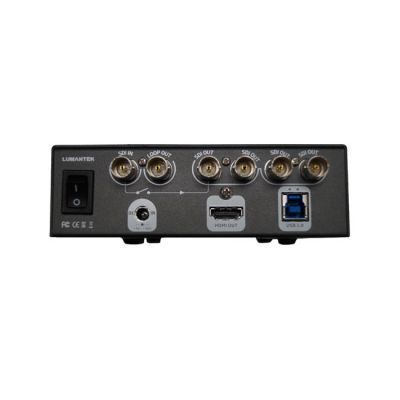

Taking the world of C.G. Graphics on your content to the next level, the NEW ez-DSK from Lumantek proves you can get the power without sacrificing on price point! The ez-DSK allows easy application of computer graphics like subtitles, images, sequences, videos and widgets into your outgoing video source. Featuring overlay technology that does not take extra video ports like convectional Fill/Key generators allowing zero delay transmission, the ez-DSK cuts down on bulk of setup and redundancy. It comes equipped with fail-safe trigger mechanism to prevent any disruption if any malfunction of the device happens. All outgoing ports re-clock the video source for better quality video. Ez-DSK distributes the outgoing source into 4SDI and 1 HDMI, so it works as a distributor and a converter at the same time.Ā
Data Input
- SDI Input: (BNC 75Ī©) x1
- SD: 480i59/ 576i50
- HD: 1080p30 / 1080p29 / 1080p25 / 1080p24 / 1080p23 / 1080i60 / 1080i59 / 1080i50 / 720p60 / 720p59 / 720p50
- FullHD: 1080p60/1080p59/1080p50
- CG Input: (USB3.0)x1
- HD: 1080p30/1080p29/1080p25 / 1080i60/1080i59/1080i50/720p60/720p59/720p50
Data Output
- SDI Output: (BNC 75Ī©)x4
- SD: 480i59 / 576i50
- HD: 1080p30 / 1080p29 / 1080p25 / 1080p24 / 1080p23 / 1080i60 / 1080i59 / 1080i50 / 720p60 / 720p59 / 720p50
- FullHD: 1080p60/1080p59/1080p50
- SDI Loop Output: (BNC 75Ī©) x1
- Same input resolution
- Overlay feature is not supported
- HDMI Output: (BNC 75Ī©)x1
- SD: 480i59 / 756i50
- HD: 1080p30/1080p29/1080p25 /Ā 1080p24 / 1080p23 / 1080i60/1080i59/1080i50/720p60/720p59/720p50
Ā
- Full HD: 1080p60 / 1080p59 / 1080p50
Ā
