Description

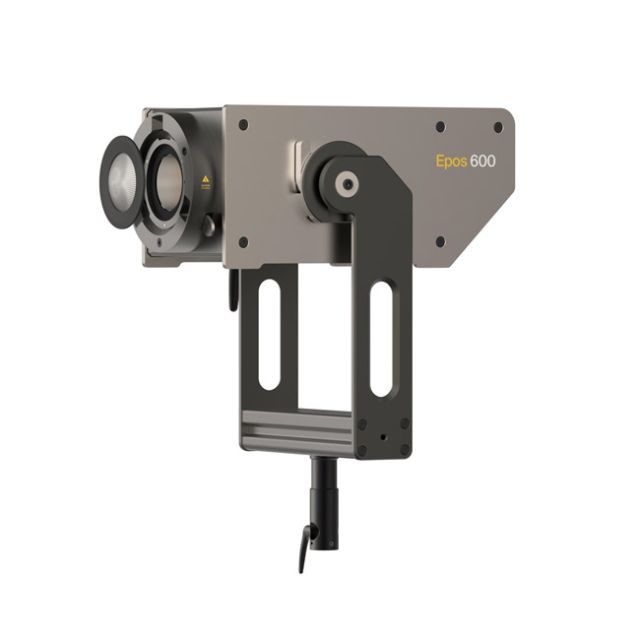

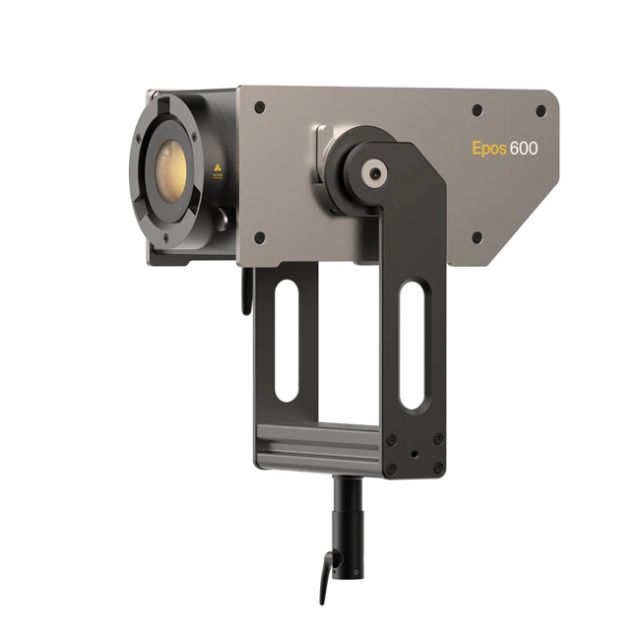

Kelvin Epos 600, 600W RGBACL LED COB Studio Light incl. Rolling Case

Your super hero on any lighting set.

Made to withstand life on set and deliver mind-blowing light accuracy and control.

• 600 W Full Spectrum LED COB studio light
• Cantastoria™ RGBACL Six-Color Light Engine (patent pending)
• CRI 97+ | TM30 Rf95+ / Rg 100+ | TLCI 99 | CQS 97 | SSI 84 @3200 K | SSI 74 @5600 K
• 1,700K to 20,000K CCT
• Color spaces (Rec. 709, 2020, DCI-P)
• IP65 weather proof in 6 mm aluminium housing
• 5” Touch Display
• Machined Bowens mount with Kelvin MagTech™
• DMX 5-Pin XLR and wireless via CRMX (TiMo2 by Lumen Radio)
• Art-Net, sACN, and BLE & Kelvin Narrator App
• 5 kg / 12.1 lbs (lamp head) + 2.2 kg / 4.9 lbs (yoke)

Light Fixture

Light Engine

Cantastoria – Six-Color light engine Red, Green, Blue, Amber, Cyan, and Lime

IP Rating

65

Color Temperature

1,700 K to 20,000 K +/- 1/8 G/M

Modes

CCT, HSI, RGB, XY, Gels, Effects

Dimming

0-100% (continuous)

Display

5” TFT LCD Touch Screen

Housing Material

Aluminum

Number of LEDs

200

Expected Lamp Life

50 000 hours

Beam Angle native, without optical modifier

93°

Beam Angle Kelvin Bowens Mount Reflector

62°

Beam Angle Kelvin Bowens Mount Reflector

55°

Color Accuracy Standard

Standards & Industry Metrics: Normal Mode

CRI 98 | TM 30 Rf95+, Rg101+ | TLCI 99 | CQS 97 | SSI 84 @3200K | SSI 74 @5600K

Standards & Industry Metrics: High Speed Mode

CRI 98 | TM 30 Rf93+, Rg101+ |TLCI 99 | CQS 97 | SSI 84 @3200K | SSI 74 @5600K

Controller

Battery Input

1 x XLR 48 VDC

DMX Connection

5-Pin XLR

Power Input Connection

powerCON True 1

USB

USB-C

IP Rating

65

Mounting

Yoke Mount

Kelvin Epos 600 Yoke (360° tilt)

Accessory Mount

Bowens S-Type with Kelvin MagTech™ (proprietary)

Fixture Mount

1-1/8″ stud (junior pin) and 5/8″ receiver (baby pin)

Mount for Diffusers, Intensifiers, and Accessories

Kelvin MagTech™

Remote Operation

Control

DMX 512, Wireless DMX/CRMX (TiMo2) by Lumen Radio Art-Net, sACN, Bluetooth Kelvin Narrator App

Bluetooth

Wireless Operating Range: ≤100 m

Lumen Radio

Wireless Operating Range: ≤100 m

Power

AC Input Power

100 ~ 230 V AC +/-10%, 50/60 Hz

AC PowerCON Output

Yes

DC Input Power

48 V DC

Power Source

AC mains, External Battery Power Stations and Block Batteries

Max Power Consumption

600 W (nominal) | 720 W (rated)

Battery Input

3-Pin XLR 48 V DV

Battery Voltage Range

46 to 50 VDC

Power Pass-Thru

Yes

Operating Temperature

-4 to 113°F | -20 to 45°C

Cable

Head to Ballast Cable

8 m / 26.2 ft with Neutrik 10-Pin XLR

AC Power Cable

8 m / 26.2 ft with Neutrik powerCON TRUE1

Weight

Lamp Head + Yoke

7.7 kg / 17 lbs

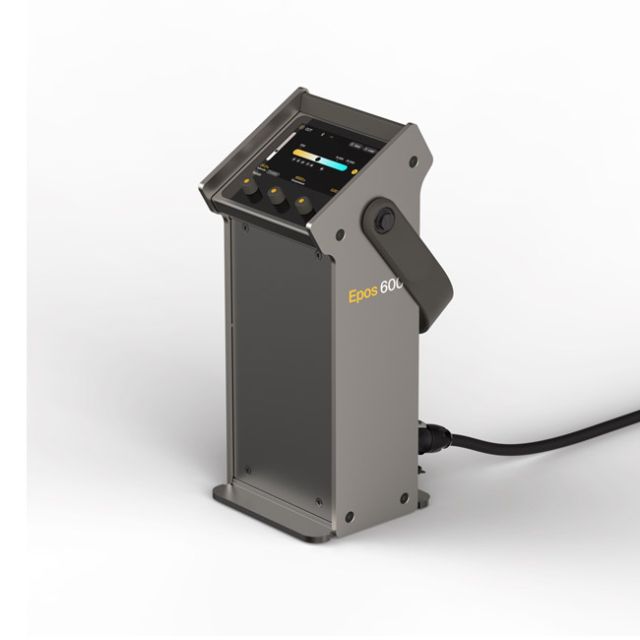

Control & Power Supply Unit

5.2 kg / 11.5 lbs

Super Clamp

0.44 kg / 0.98 lbs

Rolling Case (Filled)

20.4 kg / 44.97 lbs

Rolling Case (Empty)

7 kg / 15.43 lbs

Dimensions (LxWxD)

Lamp Head w/o Yoke

34.8 x 19.8 x 15.5 cm / 13.7 x 7.8 x 6.1 in

Lamp Head w/ Yoke

34.8 × 29.0 x 43.0 cm / 13.7 x 11.4 x 16.9 in

Control Box

17.1 x 15.7 x 36.8 cm / 6.7 x 6.2 x 14.5 in

Super Clamp

9.0 x 5.4 x 13.6 cm / 3.54 x 2.13 x 5.35 in

Reflector

12.7 x 12.7 x 17.8 cm / 5 x 5 x 7.01 in

Rolling Case

62 x 38 x 46 cm / 24.4 x 14.96 x 18.11 in

Packed incl. Rolling Case in Cardboard

Weight

23.9 kg / 52.7 lbs

Dimensions (L x W x D)

68.5 x 50 x 46 cm / 27.0 x 19.7 x 18.1 in

Certifications

CE, RoHS, UKCA, KC

✅

FCC, IC, PSE

Pending

What’s In the Box?

• Kelvin Epos 600 lamp head
• Kelvin Epos 600 controller & PSU
• 1 x Kelvin High Performance Lens for Epos Series
• 1 x Kelvin Epos Reflector (62°)
• Kelvin Epos 600 10-pin XLR head cable (8 m / 26.2 ft)
• Neutrik powerCON True1 AC power cable (8 m / 26.2 ft)
• Kelvin Epos 600 rolling case
• Protective cap for Epos 600 controller
• Quick release lighting super clamp
