Description

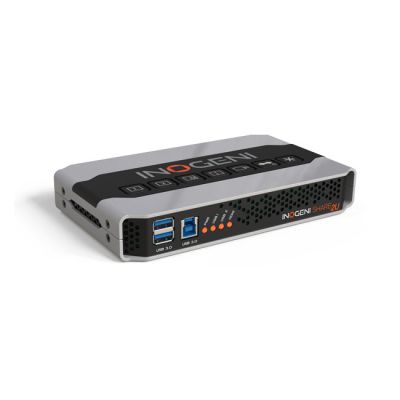

Inogeni SHARE2U Camera Mixer
This easy Plug-And-Go mixer capturing 2 Picture-In-Picture or side-by-side video sources in one video flow is equally perfect to enhance the experience of your HyFlex classes and collaborative meetings.
- Mix 2 cameras from 3 sources (2 USB 2.0 and 1 HDMI)
- Engage a dynamic presentation and easily switch up to 14 mix setup videos
- Change camera and video configuration without cutting the flow of your presentation
- Ideal for remote education, collaborative meetings, webinars or live streaming
- Compatible with the Q-SYS Core processors
- Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
- Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0
- Audio I/O and mixer via the INOGENI Control App
- Controllable by LAN & RS-232
- Cost-effective solution that is reliable and simple to install and connect (no driver required)
- Compact and robust design with its aluminium enclosure
- Designed and manufactured in Canada
- TAA-compliant
How it works

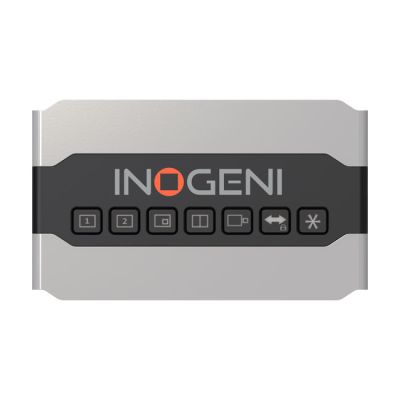

The SHARE2U Dual USB Camera to USB 3.0 Pro AV camera mixer can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on the top of the device to control it manually.

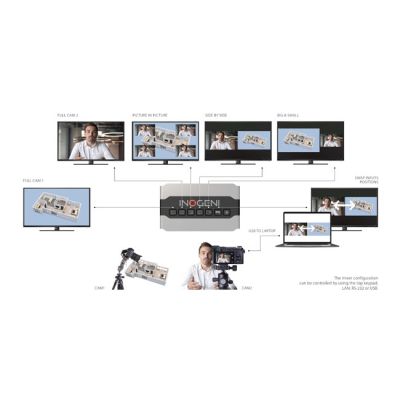

You can use the camera mixer feature of the SHARE2U to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Teams®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.
With the push of a button, you can easily switch up to 14 mix setup videos.
Features
The SHARE2U Dual USB Camera to USB 3.0 professional camera mixer offers an array of features for a smooth and seamless BYOD or BYOM experience:
- Control interface: LAN, RS-232, USB (Get the software upgrade: Crestron Serial & IP modules)
- Local and remote keypad: REMOTE User Guide
- USB 2.0 cameras and HDMI capture
- Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0
- Audio mixer: Unbalanced, line level stereo audio support
- PTZ control of USB cameras over USB 3.0 interface
- Device configuration via the INOGENI Control App
- Firmware upgrade available via the INOGENI Control App
- Supports multiple devices on the same host
- Compatible with Windows, macOS and Linux
- Compatible with the Q-SYS Core processors
- Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
Main feature

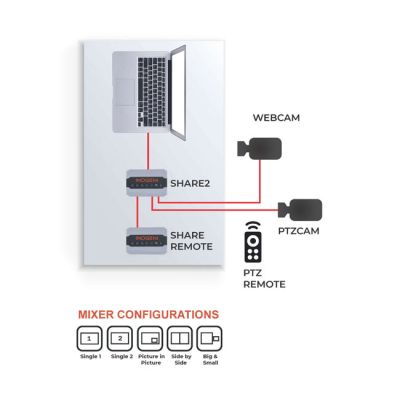

2:1 Camera mixer:
2:1 Camera mixer
(1x USB and 1x USB or HDMI cameras mixer into a single USB 3.0 interface)
Simultaneous capture and mix of 2x USB 2.0 signals + Audio into one 1080p60 USB 3.0 signal.
14 mix setup videos:
Picture-in-picutre, side-by-side
Video input
#1 Connector & video resolutions:
1x USB camera 2.0
MJPEG or H264 (*)
Depends on the camera specifications
#2 Connector & video resolutions:
1x USB camera 2.0
MJPEG or H264 (*)
Depends on the camera specifications
– OR –
1x HDMI
1080p60, 1080p30, 720p60 and 480p60
(1080p60 supported for S/N greater than SU2111xxx and SUM111xxx)
Notes for MJPEG and H264:
- USB 2.0 or USB 3.0 cameras that only support uncompressed video will not work properly. For better performance, use USB 3.0 or 2.0 cameras that support MJPEG or H264 CODECs.
Color space:
HDMI : RGB, YCbCr 4:4:4 and 4:2:2
Video output
HDMI:
1x HDMI up to 1080p60
(One mixed video stream)
USB:
1x USB 3.0 uncompressed up to 1080p60
(One mixed video stream)
USB – Color Space ou CODEC:
USB 3.0: YCbCr (YUY2) 4:2:2 8-bit.
USB 2.0: MJPEG
USB – Video scaler:
Automatic hardware-based
USB – Color space conversion:
Automatic hardware-based
USB – Sampling conversion:
Automatic hardware-based
USB – Frame rate conversion:
Automatic hardware-based
Audio
Analog audio connections:
Unbalanced analog stereo, line level, 3.5 mm jack
Analog audio I/O:
2-channel LPCM 48kHz audio from line input
Digital audio I/O:
Embedded in HDMI or USB
Audio routing:
See following link for SHARE2 and SHARE2U audio routing

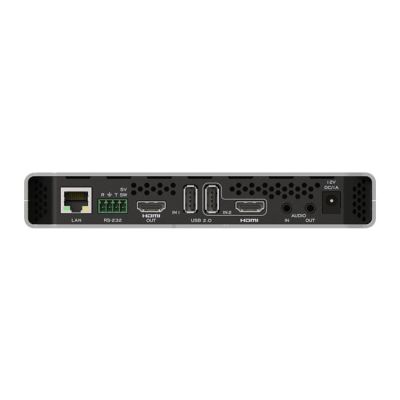

Control
Control options:
RS-232 on terminal block
Mixer control:
Integrated keypad, LAN, USB-HID, INOGENI REMOTE, RS-232
IP interface:
10 Mbps
Static address configuration through our Control App
DHCP not supported
USB Port
USB expansion port:
Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host.
Compatibility
Barco ClickShare Conference Compatible:
Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
Operating systems:
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2.6.38)
Minimum host requirements:
USB 2.0 port – We recommend USB 3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Supported cameras:
Depends on the camera specifications
Software Compatibility:
UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2.
Compatible to: Teams, Zoom, Webex, Google Meet, etc.
Physical details
Dimensions (W x L x H):
18.5 cm x 11.0 cm x 3.0 cm
7.25” x 4.25” x 1.25”
Power supply:
12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
Weight:
540 g (1.19 lb)
Package content:
1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
1x RS-232 terminal block adapter
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)
Operating temperature:
0° to 45° C
32° to 113° F
Storage temperature:
-40° to 105° C
-40° to 221° F
Relative humidity:
0% to 90% non-condensing
Informations
UPC code:
040232633843
Origin:
Canada
Warranty:
2 years
Certifications
Download:
Certifications available on the Support Tab
HDCP-compliant:
The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Certifications:
FCC, CE, RoHS, IEC62368, SoV, RCM, KC
TAA-compliant:
Yes
What’s in the box
- 1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
- 1x RS-232 terminal block adapter
- 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
- International adapters included in the box (AUS, EUR, UK and US)
