Inogeni SHARE2 Camera Mixer

Description

Inogeni SHARE2 Camera Mixer

INOGENI’s easy and versatile SHARE2 Camera Mixer provides Picture-In-Picture in one video flow. Create interactive presentations for collaborative meetings and HyFlex classrooms.

• 2 HDMI cameras mixer into a single USB 3.0 interface
• Engage a dynamic presentation and easily switch up to 14 mix setup videos
• Change camera and video configuration without cutting the flow of your presentation
• Ideal for remote education, collaborative meetings, webinars or live streaming
• Compatible with the Q-SYS Core processors
  • See Q-SYS/INOGENI SHARE2 application notes
• Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
• Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0
• Audio I/O and mixer via the  INOGENI Control App
• Controllable by LAN & RS-232
• Cost-effective solution that is reliable and simple to install and connect (no driver required)
• Compact and robust design with its aluminium enclosure
• Designed and manufactured in Canada

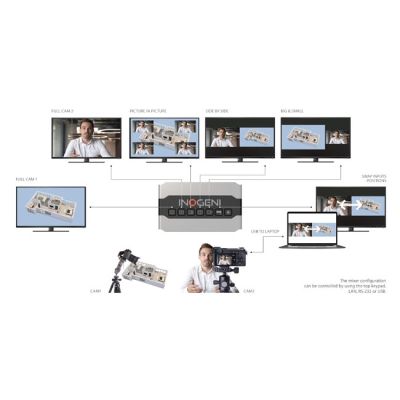

How it works

The SHARE2 Dual HDMI/DVI to USB 3.0 professional camera mixer can be controlled by an application on the host side using our LAN or RS-232 interfaces. You can also use the keypad on the top of the device to control it manually.

You can use the camera mixer feature of the SHARE2 to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Teams®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.

Easy push-button to switch easily up to 14 mix setup videos.

Features

The SHARE2 Dual HDMI/DVI to USB 3.0 professional camera mixer offers an array of features for a smooth and seamless experience.

• Control interface: LAN, RS-232, USB (Get the  software upgrade:  Crestron Serial & IP modules)
• Local and remote keypad:  REMOTE User Guide
• HDMI, DVI, VGA or CVBS video input connectors; VGA and CVBS are available using an adapter
• Unbalanced, line level stereo audio support
• Digital Fluid technology: Internal frame buffers maximize frame rate with any host
• Hardware-based color space and sampling conversion
• Automatic scaling and frame rate conversion
• Customizable video processing functions
• Supports multiple devices on the same host
• Device configuration via the  INOGENI Control App
• Firmware upgrade available via the  INOGENI Control App
• Compatible with the Q-SYS Core processors
  • See Q-SYS/INOGENI SHARE2 application notes
• Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)

Plug & Go

INOGENI has developed numerous custom applications with our global partners. Capture, mix and switch without drivers. INOGENI makes everything work together thanks to our professional camera mixers.

Compatible with all USB cameras

This professional camera converter is fully compatible with all HDMI cameras, including professional-grade equipment such as Vaddio, Aver or Marshall cameras.

Main feature

2:1 Camera mixer:

2:1 Camera mixer
(2x HDMI cameras mixer into a single USB 3.0 interface)

Simultaneous capture and mix of 1x HDMI and 1x DVI/VGA/Component Analog or digital/or CVBS + Audio into 1x1080P60 USB 3.0 signal.

14 mix setup videos:
Picture-in-picutre, side-by-side

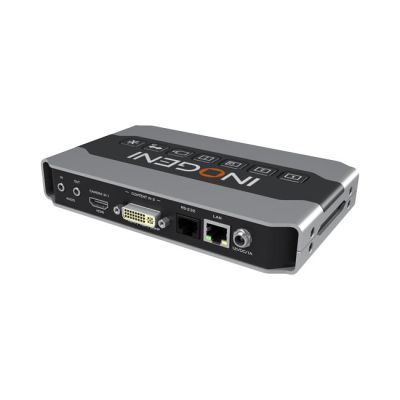

Video input

#1 Connector & video resolutions:

1x HDMI
1080p, 720p, 1080i, 480p, 576p, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480
Frame rate: up to 60 Hz, all formats.

#2 Connector & video resolutions:

1x DVI-I (Digital + Analog)

– OR-

With HDMI Adapter
Note: You may use the included HDMI to DVI adapter to have two HDMI inputs.

DVI: 1080p, 1080i, 720p, 480p, 576p, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480
VGA: 1080p, 720p, 480p, 576p, 1920×1200, 1680×1050, 1400×1050, 1600×1200, 1280×1024, 1360×768, 1280×768, 1280×800, 1024×768, 800×600, 640×480
Component: 1080p, 1080i, 720p, 480p, 480i, 576p and 576i
CVBS – 480i, 576i
Frame rate: up to 60 Hz, all formats.

Color space:

RGB, YCbCr, 4:4:4, and 4:2:2

Video output

USB:

1x USB 3.0 uncompressed up to 1080p60
(One mixed video stream)

USB – Color Space ou CODEC:

USB 3.0: YCbCr (YUY2) 4:2:2 8-bit
USB 2.0: MJPEG

USB – Video scaler:

Automatic hardware-based

USB – Color space conversion:

Automatic hardware-based

USB – Sampling conversion:

Automatic hardware-based

USB – Frame rate conversion:

Automatic hardware-based

Audio

Analog audio connections:

Analog stereo, line level, 3.5 mm jack

Analog audio I/O:

2-channel LPCM 48kHz audio from line input

Digital audio I/O:

Embedded in HDMI

Audio routing:

See following link for SHARE2 and SHARE2U Audio routing.

Control

Control options:

Not available

Mixer control:

Integrated keypad, LAN, USB-HID, INOGENI REMOTE, RS-232 (SHARE2 requires installation of COM port driver)

IP interface:

10 Mbps
Static address configuration through our Control App.
DHCP not supported.

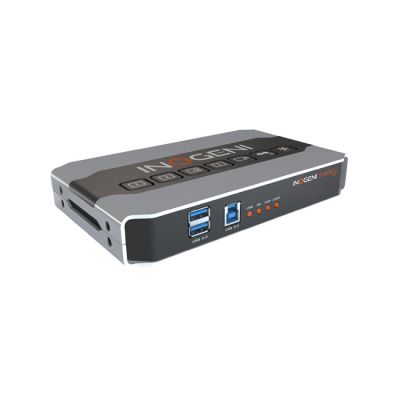

USB Port

USB expansion port:

Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host

Compatibility

Barco ClickShare compatible:

Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)

Operating systems:

NO driver installation necessary!

Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2.6.38)

Minimum host requirements:

USB 2.0 port – We recommend USB 3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory

Supported cameras:

Cameras and camcorders with an HDMI, DVI, VGA or CVBS output

Software Compatibility:

UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2.
Compatible to: Teams, Zoom, Webex, Google Meet, etc.

Physical details

Dimensions (W x L x H):

18.5 cm x 11.0 cm x 3.0 cm
7.25” x 4.25” x 1.25”

Power supply:

12V (100-240 VAC 50/60Hz to 12V/1.2A DC)

Weight:

530 g (1.17 lb)

Package content:

1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
1x HDMI to DVI adapter
1x VGA to DVI adapter
1x Serial RS-232 cable (DB9 female to RJ45 plug)
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)

Operating temperature:

0° to 45° C
32° to 113° F

Storage temperature:

-40° to 105° C
-40° to 221° F

Relative humidity:

0% to 90% non-condensing

Informations

UPC code:

40232461736

Origin:

Canada

Warranty:

2 years

Certifications

HDCP-compliant:

The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

Certifications:

FCC, CE, RoHS, IEC62368, SoV, RCM, KC, MSIP

TAA-compliant:

Yes

What’s in the box

• 1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
• 1x HDMI to DVI adapter
• 1x VGA to DVI adapter
• 1x Serial RS-232 cable (DB9 female to RJ45 plug)
• 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
  • International adapters included in the box (AUS, EUR, UK and US)
