Inogeni SDI2USB3 SDI to USB (+Loop) Converter

Description

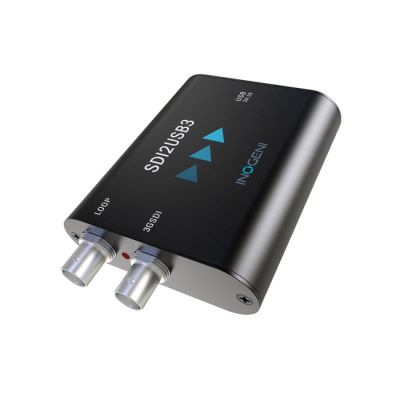

Inogeni SDI2USB3 SDI to USB (+Loop) Converter

INOGENI’s SDI2USB3 video converter enables 3GSDI cameras to connect with computers, laptops or CODECs—without glitches or complicated setups.

• 3GSDI professional video capture to USB 3.0
• Highly stable signal
• Active loop output connector
• Cost-effective professional camera converter solution that is reliable and simple to install and connect (no driver required)
• Compact and robust design with its aluminium enclosure
• Designed and manufactured in Canada
• TAA-compliant

How it works

The SDI2USB3 professional video converter features a 3GSDI input with active loop output and supports SD and HDTV video formats. Compact and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution.

UVC-compliant, it works with all DirectShow compatible software. The SDI2USB3 video converter supports 1080p resolution up to 60 fps.

Features

Discover the features of the SDI2USB3 professional video converter that offers a hassle-free user experience:

• 3GSDI video capture to USB 3.0
• Active loop output connector
• Supports 1080p, 1080i, 720p, 480p, 576p, NTSC and PAL at up to 60 fps
• All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0
• Embedded audio extraction and output as two-channel LPCM
• Digital Fluid technology: Internal frame buffers maximize frame rate with any PC
• Hardware-based color space and sampling conversion
• Automatic scaling and frame rate conversion
• Customizable video processing functions
• Supports multiple devices on the same PC
• Compatible with Barco ClickShare Conference

Plug & Go

INOGENI has developed numerous custom applications with our global partners. Capture, mix and switch without drivers. INOGENI makes everything work together thanks to our professional video converters.

Compatible with all SDI cameras

This professional camera converter is fully compatible with all SDI cameras, including professional-grade equipment such as Vaddio, Aver or Marshall cameras.

Main feature

Description:

Converts SDI (video and audio) to USB 3.0 without compression. Active loop output connector.

Video input

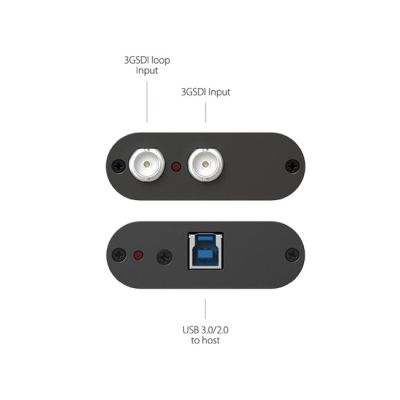

Connector & video resolutions:

1x BNC (3GSDI input)
1x BNC (3GSDI active loop out)
3G: 1080p60/59.94/50 (Level A, B-Dual Link)
HD: 1080i60/59.94/50, 1080p30/29.97/25/24/23.98 and 720p60/59.94/50/30/29.97/25/24/23.98
SD: NTSC/PAL

Jitter (alignment):

HD/SD: <0.2 UI 3 Gb/s: <0.4 UI

Cable length:

150m (492 ft.) at 1.485 Gb/s
120m (393 ft.) at 2.970 Gb/s

Frame rates:

60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz

Color space:

YCbCr, 4:2:2

Sampling rate:

148.5/148.35 MHz

Embedded audio:

Ch 1&2 48kHz LPCM

Video output

Connector & video resolutions:

1x BNC (3GSDI active loop out)

Color space:

YCbCr 4:2:2

USB – Connector & video resolutions:

1x USB 3.0 Type-B

USB – CODECs:

YUY2 4:2:2 8-bit for USB 3.0
MJPEG for USB 2.0*

Notes for MJPEG for USB 2.0:

• Devices having serial numbers >= SD2036XXX will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video.

USB – Video scaler:

Automatic hardware based

USB – Color space conversion:

Automatic hardware based

USB – Sampling conversion:

Automatic hardware based

USB – Frame rate conversion:

Automatic hardware based

Audio

Analog audio I/O:

2-channel LPCM audio from SDI

Audio input connector:

Ch 1&2 48kHz LPCM from SDI

Compatibility

Operating system:

NO driver installation necessary!

Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2638)

Minimum host requirements:

USB 2.0 port – We recommend USB3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory

Motherboard:

Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic

Supported cameras:

Cameras and camcorders with a SDI output

Software compatibility:

UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.

Physical details

Dimensions (W x L x H):

8.1cm x 7.4cm x 1.9cm
3.2” x 2.9” x 0.75”

Power supply:

Powered by USB (5V / 580mA)

Weight:

139 g (0,30 lb)

Package content:

1x 3ft USB 3.0 cable (Type-A to Type-B)

Operating temperature:

0° to 45° C
32° to 113° F

Storage temperature:

-40° to 105° C
-40° to 221° F

Relative humidity:

0% to 90% non-condensing

Informations

UPC code:

40232250538

Origin:

Canada

Warranty:

2 years

Certifications

Certifications:

FCC, CE, RoHS, IEC62368, SoV, RCM, BSMI RoHS, BSMI, CB, KC, MSIP

TAA-compliant:

Yes

What’s in the box

• 1x 3ft USB 3.0 cable (Type-A to Type-B)
