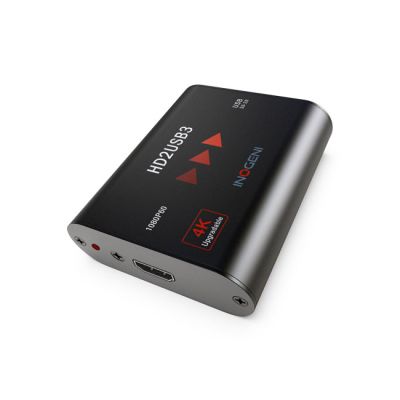

Inogeni HD2USB3 HDMI to USB 3.0 Video Converter

Description

Inogeni HD2USB3 HDMI to USB 3.0 Video Converter

INOGENI’s HD2USB3 HDMI to USB 3.0 video converter is the most reliable and convenient PC input to capture uncompressed video with audio from your camera’s HDMI output for recording, editing, videoconferencing and streaming applications.

The HD2USB3 is a 4K upgradable 1080p60 HDMI to USB 3.0 converter.

• Professional HDMI video converter into a single USB 3.0 interface
• Highly stable signal
• HDMI audio support
• Cost-effective professional camera converter solution that is reliable and simple to install and connect (no driver required)
• Compact and robust design with its aluminium enclosure
• Designed and manufactured in Canada
• TAA-compliant

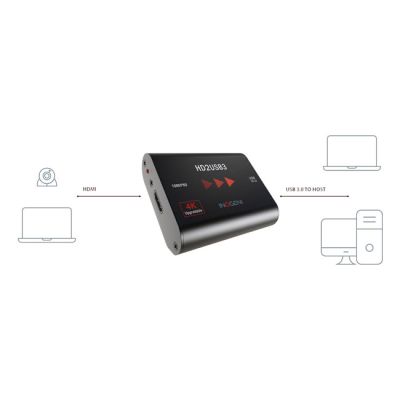

How it works

The HD2USB3 HDMI to USB 3.0 video converter features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats, up to 1200p60, as well as most computer graphic formats. This converter works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.

Compact and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is also UVC-compliant, so it will work with all DirectShow compatible software. The HD2USB3 professional video converter supports 1200p resolution up to 60 fps.

Features

Discover the features of the HD2USB3 HDMI to USB 3.0 professional video converter that offer a stellar user experience:

• HDMI capture to USB 3.0
• Field upgradable to 4K for a minimal fee ($95)
• Supports 1080p, 1080i, 720p, 480p, and 576p video formats
• Supports 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 graphic formats
• Up to 1200p at 60 fps
• HDMI audio support
• Digital Fluid technology: Internal frame buffers maximize frame rate with any PC
• Hardware-based color space and sampling conversion
• Automatic scaling and frame rate conversion
• Customizable video processing functions
• Image controls: Brightness, contrast, saturation, and hue settings
• Supports multiple devices on the same PC
• Compatible with Barco ClickShare Conference

Plug & Go

INOGENI has developed numerous custom applications with our global partners. Capture, mix and switch without drivers. INOGENI makes everything work together thanks to our professional video converters.

Compatible cameras

This professional camera converter (upgradeable to 4K) is fully compatible with all HDMI cameras, including professional-grade equipment such as Vaddio, Aver or Marshall cameras.

APPLICATION

The HD2USB3 HDMI to USB 3.0 professional video converter can be used for a wide variety of applications.

Tech Specs

Converts 1080p HDMI (video and audio) to USB 3.0 without compression. Field upgradable to 4K.

Video input

Connector & video resolutions

1x HDMI 1.4a
1080p, 720p, 1080i, 480p, 576p, 1280×1024, 1280×960, 1024×768, 800×600, 640×480

Frame rates

60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions

Color space

RGB, YCbCr, 4:4:4, and 4:2:2

Sampling rate

297 MHz

Embedded audio

Ch 1&2 48kHz LPCM

Video output

Color space

RGB, YCbCr, 4:4:4, and 4:2:2

USB – Connector & video resolutions

1x USB 3.0 Type-B

USB – CODECs

YUY2 4:2:2 8-bit for USB 3.0
MJPEG for USB 2.0*

Notes for MJPEG for USB 2.0

* Devices having serial numbers >= HD2035XXX will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video.

USB – Video scaler

Automatic hardware based

USB – Color space conversion

Automatic hardware based

USB – Sampling conversion

Automatic hardware based

USB – Frame rate conversion

Automatic hardware based

Audio

Analog audio I/O

2-channel LPCM audio from HDMI

Audio input connector

CH1&2 48kHz LPCM feed from HDMI

Compatibility

Operating system

NO driver installation necessary!

Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2638)

Minimum host requirements

USB 2.0 port – We recommend USB3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory

Motherboard

Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic

Supported cameras

Cameras and camcorders with an HDMI output

Software compatibility

UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.

See more compatible applications here

Physical details

Dimensions (W x L x H)

8.1 cm x 7.4 cm x 1.9 cm
3.2” x 2.9” x 0.75”

Power supply

Powered by USB (5V, 580mA)

Weight

120 g (0,26 lb)

Package content

1x 3ft USB 3.0 cable (Type-A to Type-B)

Operating temperature

0° to 45° C
32° to 113° F

Storage temperature

-40° to 105° C
-40° to 221° F

Relative humidity

0% to 90% non-condensing

Informations

UPC code

40232521003

Origin

Canada

Warranty

2 years

Certifications

HDCP-compliant

The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

Certifications

FCC, CE, RoHS, IEC62368, SoV, RCM, BSMI RoHS, BSMI, CB, KC, MSIP

TAA-compliant

Yes

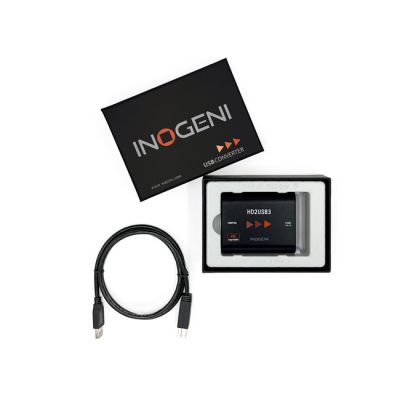

What’s in the box

• 1x 3ft USB 3.0 cable (Type-A to Type-B)
