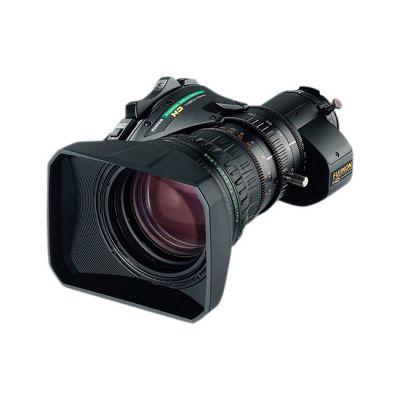

Fujinon XA20SX8.5BERM HD Professional Lens

Description

Fujinon XA20SX8.5BERM HD Professional Lens

• Focal Length Covered 8.5 to 170mm (340mm with x2 extender)
• HD Optical Performance
• Built in a x2 extender
• Newly eXceed Servo Grip
• Quick zoom*1 and Auto Cruising
• Latest EBC coatings for improved optical performance
• *1 It is necessary to set lens up to use Quick Zoom function.

Specifications

Model Name
XA20sx8.5BERM

Focal length
[1x]
8.5-170mm
[2x]
17-340mm

Zoom ratio
20x

Extender
2x

Maximum relative aperture (F-no.)
1 : 1.8 (8.5-113mm) / 1 : 2.7 (170mm)

Minimum object distance (M.O.D.) from front lens
0.9m

Object dimensions at M.O.D.
16 : 9 Aspect ratio
[1x]
8.5mm 910 x 511mm
170mm 47 x 26mm
[2x]
17mm 469 x 264mm
340mm 24 x 13mm

Angular field of view
16 : 9 Aspect ratio
[1x]
8.5mm 58.9° x 35.2°
170mm 3.2° x 1.8°
[2x]
17mm 31.5° x 18°
340mm 1.6° x 0.9°

Filter thread
M82 x 0.75

Approx Size
φ85 x 200.8mm(φ x Length)

Approx Mass
1.6kg(without lens hood)
