Description

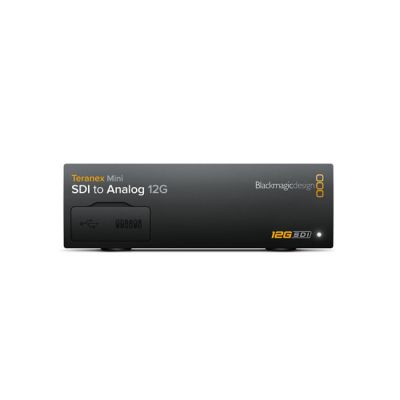

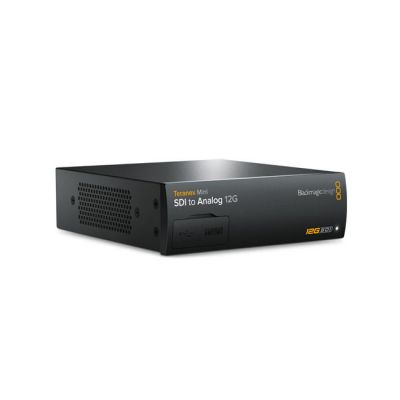

Teranex Mini – SDI to Analog 12G
Convert from 12G-SDI to Analog. Use SD, HD, 6G and 12G-SDI rates and convert to analog video output. Built in down converter lets you connect Ultra HD sources to component video equipment in SD or HD. Allows you to connect analog equipment including Betacam SP, VHS, and video monitors.

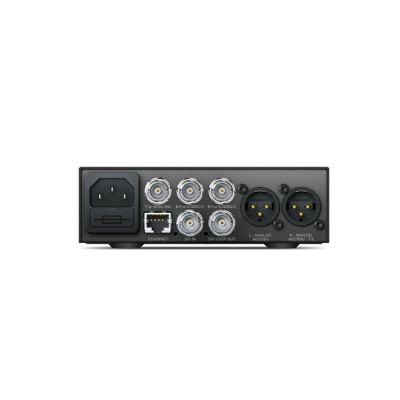

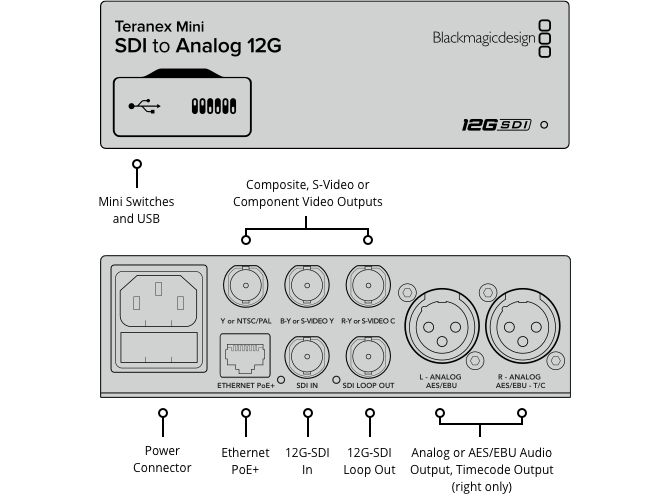

Connections
SDI Video Input
1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Output
1 x 12G-SDI loop output.
Analog Audio Output
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode output.
AES/EBU Audio Output
4 channels professional 110Ī© balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.
Multi Rate Support
Automatic switching between SD/HD/2K and 4K.
Updates and Configuration
USB or Ethernet.
Re-Clocking
Yes
Ā
Standards
Ā
SD Format Support
525/29.97 NTSC,Ā 625/25 PAL
HD Format Support
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
2K Format Support
2048 x 1080PsF23.98,2048 x 1080PsF24,Ā 2048 x 1080PsF25,2048 x 1080p23.98,Ā 2048 x 1080p24,2048 x 1080p25
4K Format Support
3840 x 2160p23.98,Ā 3840 x 2160p24,3840 x 2160p25,Ā 3840 x 2160p29.97,3840 x 2160p30,Ā 3840 x 2160p50,3840 x 2160p59.94,Ā 3840 x 2160p60,4096 x 2160p23.98,Ā 4096 x 2160p24,4096 x 2160p25,Ā 4096 x 2160p29.97,4096 x 2160p30,Ā 4096 x 2160p50,4096 x 2160p59.94,Ā 4096 x 2160p60
SDI Compliance
SMPTE 292M,Ā SMPTE 259M,SMPTE 296M,Ā SMPTE 372M,SMPTE 424M-B,Ā SMPTE 425M,ITU-R BT.656Ā andĀ ITU-R BT.601
SDI Video Rates
SDI video connections are auto switching between standard definition SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision
4:2:2 and 4:4:4
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD or 12G-SDI.
Analog Format Support
525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60
Analog Color Space
REC 601, REC 709
Analog Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Ā
Format Conversion
Ā
HD down conversion
Ā
Software
Ā
Software Control
Mac OS Xā¢ and Windowsā¢ software upgrade via USB and Ethernet.
Internal Software Upgrade
Via included updater application.
Ā
Settings Control
Ā
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Ā
Power Requirements
Ā
Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 – 240V AC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE (power over ethernet).
Power Consumption
15 Watts
Operational Voltage Range
90 – 240V AC
Ā

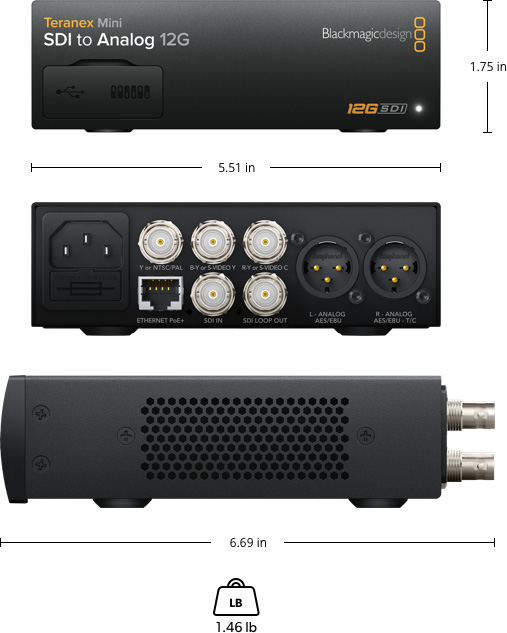

Physical Specifications
Ā
Ā
Environmental Specifications
Ā
Operating Temperature
0Ā°to 40Ā°C (32Ā° to 104Ā°F)
Storage Temperature
-20Ā°to 60Ā°C (-4Ā° to 140Ā°F)
Relative Humidity
0% to 90% non-condensing
Ā
What’s Included
Ā
Teranex Mini – SDI to Analog 12G
Software SD Card
Ā
Warranty
Ā
3 year Limited Manufacturerās Warranty.
