Blackmagic Design Teranex Mini Converter – SDI to HDMI 12G

Blackmagic Design Teranex Mini Converter – SDI to HDMI 12G

SKU: BMD-CONVNTRM/AA/SDIH Categories: , , ,

$545.00

Description

Blackmagic Design Teranex Mini Converter – SDI to HDMI 12G

Convert from 12G-SDI to HDMI. Supports all video formats including SD, HD, 6G and 12G-SDI rates and includes down converter when working with Ultra HD as the HDMI monitor will select the best format it can support. De-embed audio to balanced analog or AES/EBU formats and timecode output. Perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors.

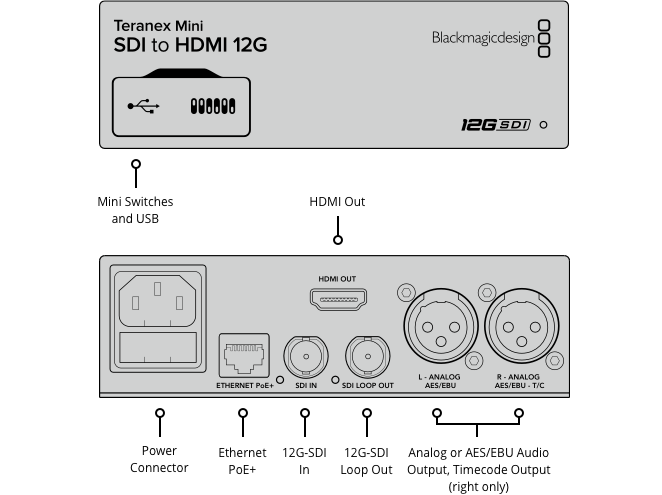

Connections

SDI Video Input

1 x 12G-SDI SD/HD/2K/4K auto switching.

SDI Video Output

1 x 12G-SDI loop output.

HDMI

1 x HDMI 2.0 type A connector with support for 2160p60.

Analog Audio Output

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.

AES/EBU Audio Output

4 channels professional 110Ī© balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.

Multi Rate Support

Automatic switching between SD/HD/2K and 4K.

Updates and Configuration

USB or Ethernet.

Re-Clocking

Yes

Teranex Mini - SDI to HDMI 12G

Standards

SD Format Support

525/29.97 NTSC,Ā 625/25 PAL.

HD Format Support

1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

2K Format Support

2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.

4K Format Support

3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60.

SDI Compliance

SMPTE 292M,Ā SMPTE 259M,SMPTE 296M,Ā SMPTE 372M,SMPTE 424M-B,Ā SMPTE 425M.

SDI Video Rates

SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Color Precision

4:2:2 and 4:4:4

SDI Color Space

YUV and RGB

SDI Auto Switching

Automatically detects SD, HD or 12G-SDI.

HDMI Format Support

525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60

HDMI Color Space

REC 601, REC 709

HDMI Color Precision

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

Software

Software Control

Mac OS Xā„¢ and Windowsā„¢ software upgrade via USB or Ethernet.

Internal Software Upgrade

Via included updater application.

Setting Control

Basic Settings Control

Mini Switches, USB and Ethernet via free software utility.

Optional Front Panel Control

Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Power Requirements

Power Supply

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 – 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE (power over ethernet).

Power Consumption

15 Watts

Operational Voltage Range

90 – 240V AC

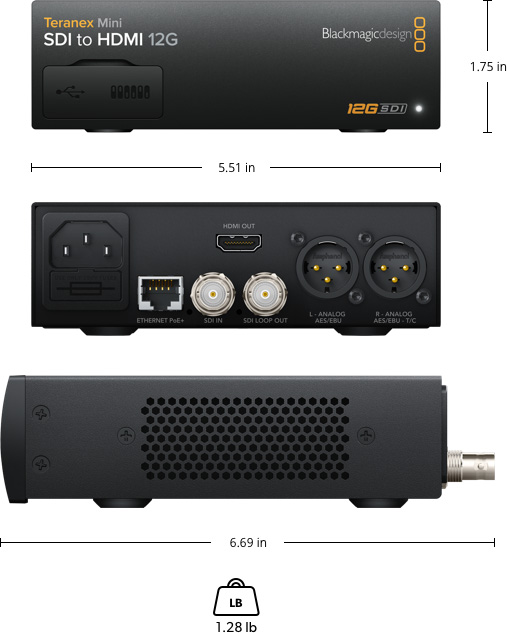

Physical Specifications

Teranex Mini - SDI to HDMI 12G

Environmental Specifications

Operating Temperature

0Ā°to 40Ā°C (32Ā° to 104Ā°F)

Storage Temperature

-20Ā°to 60Ā°C (-4Ā° to 140Ā°F)

Relative Humidity

0% to 90% non-condensing

What’s Included

Teranex Mini – SDI to HDMI 12G

Software SD Card

Warranty

3 year Limited Manufacturerā€™s Warranty.

Additional information

Weight2 kg
