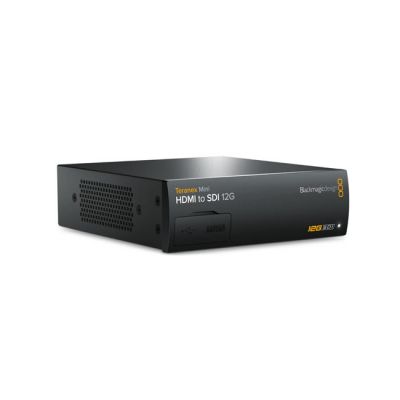

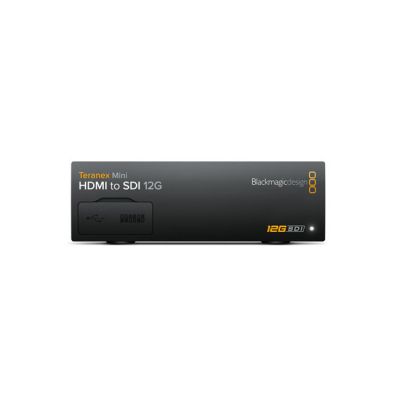

Blackmagic Design Teranex Mini Converter – HDMI to SDI 12G

Blackmagic Design Teranex Mini Converter – HDMI to SDI 12G

SKU: BMD-CONVNTRM/AB/HSDI Categories: , , ,

$545.00

Description

Blackmagic Design Teranex Mini Converter – HDMI to SDI 12G

Convert from HDMI to 12G-SDI. Works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. Embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections.

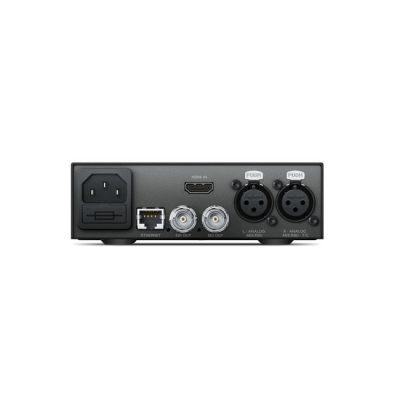

Connections

SDI Video Output

Automatically matches the SD, HD and 12G-SDI HDMI video input.

XLR Audio Input

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.

AES/EBU Audio Output

4 channels professional 110Ī© balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.

HDMI 2.0

1 x HDMI type A connector with support for 2160p60.

Multi Rate Support

Automatic switching between SD/HD/2K and 4K.

Updates and Configuration

USB or Ethernet.

Re-Clocking

Yes

Ā

Teranex Mini - SDI to HDMI 12G

Ā

Standards

Ā

SD Format Support

525/29.97 NTSC, 625/25 PAL

HD Format Support

1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

4K Format Support

3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60

SDI Compliance

SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601

SDI Video Rates

SDI video connections are auto switching between standard definition SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Color Precision

4:2:2 and 4:4:4

SDI Color Space

YUV

SDI Auto Switching

Automatically detects SD, HD or 12G-SDI.

HDMI Format Support

525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60

HDMI Color Space

REC 601, REC 709

HDMI Color Precision

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Ā

Format Conversion

Ā

HD down conversion

Ā

Software

Ā

Software Control

Mac OS Xā„¢ and Windowsā„¢ software upgrade via USB and Ethernet.

Internal Software Upgrade

Via included updater application.

Ā

Settings Control

Ā

Basic Settings Control

Mini Switches, USB and Ethernet via free software utility.

Optional Front Panel Control

Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Ā

Power Requirements

Ā

Power Supply

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 – 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE (power over ethernet).

Power Consumption

15 Watts

Operational Voltage Range

90 – 240V AC

Ā

Physical Specifications

Ā

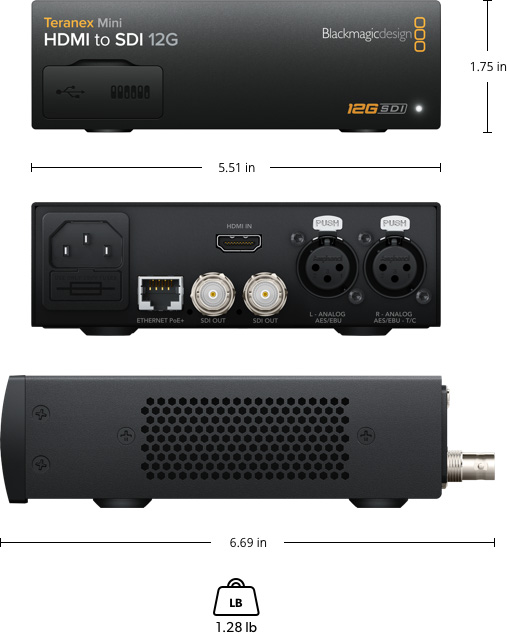

Teranex Mini - HDMI to SDI 12G

Ā

Environmental Specifications

Ā

Operating Temperature

0Ā°to 40Ā°C (32Ā° to 104Ā°F)

Storage Temperature

-20Ā°to 60Ā°C (-4Ā° to 140Ā°F)

Relative Humidity

0% to 90% non-condensing

Ā

What’s Included

Ā

Teranex Mini – HDMI to SDI 12G

Software SD Card

Ā

Warranty

Ā

3 year Limited Manufacturerā€™s Warranty.

Additional information

Weight2 kg
