Blackmagic Design MultiView 4 HD

Blackmagic Design MultiView 4 HD

SKU: BMD-HDL-MULTIP3G/04HD Categories: , , ,

$199.00

Description

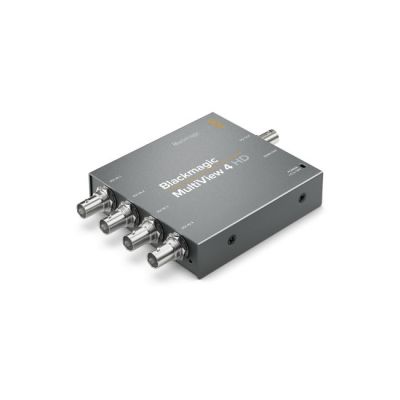

Blackmagic MultiView 4 HD

Announcing the Blackmagic MultiView 4 HD, a multi viewer that lets customers monitor 4 completely independent SDI video sources on a single display. Customers can monitor any combination of SD and HD formats and frame rates at the same time. Blackmagic MultiView 4 HD features both SDI and HDMI outputs so it can be used with both professional SDI broadcast displays or big screen consumer HD televisions.

Blackmagic MultiView 4 HD includes four completely independent multi rate 3G-SDI inputs that are compatible with existing SD and HD equipment, including Level A and B devices. All inputs feature automatic frame re-synchronization, so customers can mix and match any combination of video standards and frame rates, including referenced or non-referenced NTSC, PAL, 720p, 1080i and 1080p60 frames per second, all on the same display at the same time.

With Blackmagic MultiView 4 HD, customers no longer have to connect multiple monitors, dozens of cables or run extra power to view all of their sources. They simply plug in cameras, decks, switchers, routers and feeds into the SDI connections on Blackmagic MultiView 4 HD and can see everything on a single HD display. That means there’s less equipment to carry around and set up.

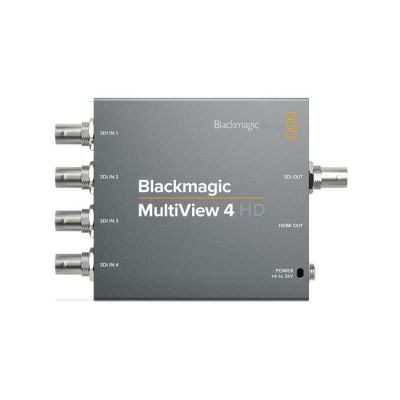

Blackmagic MultiView 4 HD features both HDMI and 3G-SDI outputs so customers can connect to either a professional SDI broadcast monitor or a low cost big screen HDMI television. When combined with an HDMI television, Blackmagic MultiView 4 HD gives customers the world’s most affordable professional multiview solution, making it perfect for use in control rooms, outside broadcast trucks, or on location shooting at live events.

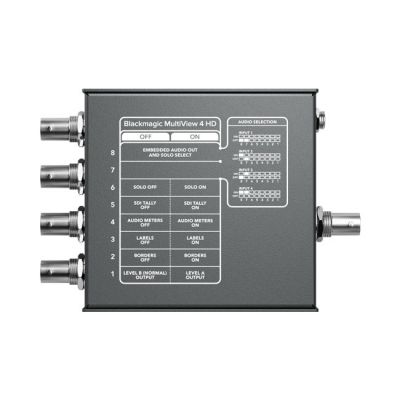

Designed to be plug and play, connected sources will instantly be displayed in a standard 2×2 grid layout. Customers can use the mini switches to turn on audio meters, choose which audio to output, as well as create custom labels, and more.

“The Blackmagic MultiView 4 HD is exciting because there has never been a more professional multiview solution with features such as on screen labels and audio meters at this affordable price,” said Grant Petty, CEO, Blackmagic Design. “It’s like having 4 completely independent broadcast monitors on a single display. Customers can use it to view mixed video formats with different frame rates at the same time on a single screen so it’s very flexible!”

Blackmagic MultiView 4 HD Key Features

  • Display up to 4 SDI sources on a single HD display via SDI or HDMI.
  • 4 multi rate 3G-SDI inputs.
  • Compatible with all SD and HD equipment and formats up to 1080p60.
  • Automatic frame re-sync allows simultaneous display of mixed SD and HD formats.
  • Standard quad split 2×2 view or SOLO.
  • 1920 x 1080 supported output resolution.
  • 90V-240V DC power supply with international AC adapters for use worldwide.

Additional information

Weight2 kg
