Azden VHF Wireless Transmitter with EX-503 Lapel Microphone

Description

Azden VHF Wireless Transmitter with EX-503 Lapel Microphone

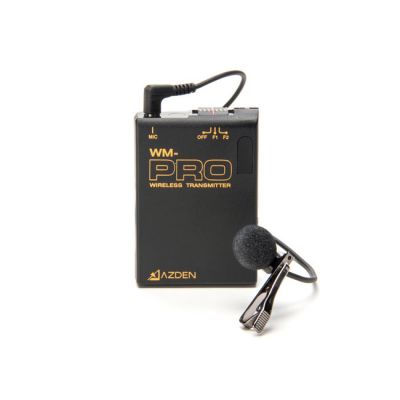

The WL/T-PRO combines the WM-PRO body-pack transmitter with the EX-503 electret condenser omni-directional lavalier microphone. This is the standard 2 frequency switchable (169.445MHz and 170.245MHz) body-pack transmitter for all “PRO” series receivers. Uses a single 9V alkaline battery and comes with a belt-clip.

Features

• Body-pack transmitter with EX-503 mic
• Works with all Azden PRO Series receivers
• 2 switchable transmission frequencies
• 9V battery powered
• Comes with belt-clip
• Transmits up to 300 feet away

WM-PRO Transmitter

• TRANSMISSION FREQ: F1: 169.445MHz; F2: 170.245MHz
• ANTENNA: Internal Antenna
• MIC UNIT: Omni-Directional Electret -Condensor
• BATTERY: 9V x 1 (not included)
• POWER CONSUMPTION: 30mA
• BATTERY LIFE: 8 to 10 Hours
• DIMENSIONS: 86 x 60 x 21.5 (mm)
• WEIGHT (W/ BATTERY): 98g (3.5oz)

EX-503 Lapel Microphone

• Mic Type: Electret Condenser
• Frequency Response: 30-18,000 Hz
• Directionality: Omni-Directional
• Sensitivity: -44dB at 1kHz (0dB=1V/Pa)
• Impedance: 2.2kΩ (at 1kHz)
• Power Requirement: Plug-in power DC 1-10V
• Weight: Approx 0.35 oz.
• Connector: TS (Tip Sleeve) right angle 3.5mm mini-plug with 1.3m cable. Detachable windscreen
• Features and Benefits: Discreet and lightweight, with included lapel clip and windscreen. Omni-directional element sounds good clipped anywhere near a speaker’s voice.
