Azden 4-Channel Portable Mixer with 10-Pin Output

Description

Azden 4-Channel Portable Mixer with 10-Pin Output

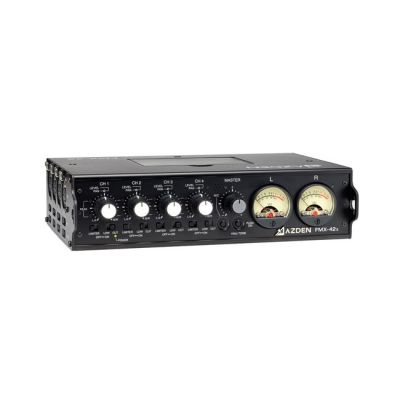

Having 4 balanced XLR line/mic inputs with individual level and pan controls, the FMX-42a provides switchable (per channel) 48V phantom power and limiting, professional quality VU meters for accurate level setting, master level control, 1k tone generator, 2 balanced XLR outputs (line/mic switchable), stereo mini-jack output for DV cameras, 10-pin Camera Return, mini-jack Camera Return and a headphone monitor with level control.

The 10-pin camera return may also be used as a secondary stereo output, independent from the mixer’s main XLR outputs, using Azden’s MX-10 Cable.

The FMX-42a can be powered by either 6 internal “AA” batteries or an optional 12V DC external supply (Locking 4-Pin Hirose connector). A ballistic nylon carrying case is included.

FREQUENCY RESPONSE

• • Monitor Output: 30 Hz – 30 kHz (+0/-2 dB)
  • alanced or Unbalanced Output: 20 Hz – 30 kHz (+0/-1.5 dB)

GENERAL

• • Signal-to-Noise Balanced Output: -120 dBu (A weighted, input equivalent level)
  • T.H.D. Balanced Output: less than 0.005% @ 1 kHz (at LINE position +19 dBu output)
  • Phantom Power Voltage: 48V (±4V)
  • Sample Tone Frequency: 1 kHz
  • Battery Requirement: 6 Alkaline “AA”
  • Battery Runtime: Approx.10 hours (Meter Illum & Phantom Power OFF)
  • External Power: 12V DC @ 200mA
  • Dimensions: 220mmW x 160mmD x 56mmH (without protrusions)9″W x 6 1/2″ D x 2 1/4″H (without protrusions)
  • Weight: 1,350 grams/3 lbs (without batteries)

CURRENT DRAIN:

• • 164mA (Meter Illum & Phantom OFF @ 9V)192mA (Meter Illum OFF, Phantom ON w/1 MIC @ 9V)125mA (Meter Illum & Phantom OFF @ 15V)

INPUT

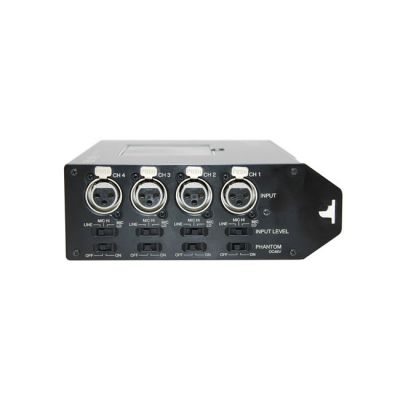

• Balanced Input: XLR 3-pin Female x 4 (CH1, 2, 3 & 4)

• Level +4 dBu (LINE) Standard: +4 dBu (electronically balanced)Maximum: greater than +26 dBuImpedance: 20kΩ

• -30 dBu (MIC 1) Standard: -38 dBu (electronically balanced)Maximum: +4 dBuImpedance: 2kΩ

• -55 dBu (MIC 2) Standard: -58 dBu (electronically balanced)Maximum: -15 dBuImpedance: 2kΩ

• High Pass Filter (HPF) 　100Hz – 6dB/oct

RETURN INPUTS (FMX-42a Only):

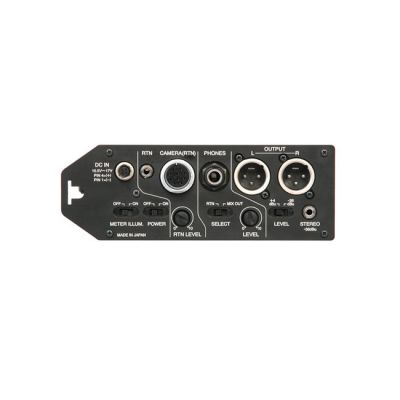

• Hirose 10-pin Female for Hirose Plug Part #RM15TD-10P3.5mm (1/8″) Stereo Mini-JackInput Level: -20 dBu – +19 dBu (unbalanced)Impedance: 11kΩ

OUTPUT

• Balanced Outputs: XLR 3-pin Male x 2 (Output L & R)

• Unbalanced Output: 3.5mm (1/8″) Stereo Mini-Jack

• Monitor Output: 6.3mm (1/4″) Stereo Jack

BALANCED OUTPUT LEVEL

• +4 dBu Standard: +4 dBu (electronically balanced, greater than10kΩ load)Maximum: +20 dBu (electronically balanced, greater than 10kΩ load)Impedance: 600Ω

• -36 dBu Standard: -36 dBu (electronically balanced, greater than 10kΩ load)Maximum: -20 dBu (electronically balanced, greater than 10kΩ load)Impedance: 600Ω

UNBALANCED OUTPUT LEVEL

• Standard: -36 dBu (electronically balanced, greater than 10kΩ load)Maximum: -20 dBu (electronically balanced, greater than 10kΩ load)Impedance: 120Ω

MONITOR OUTPUT

• Maximum: +1 dBu (32Ω load at 9V)16-100Ω load recommended

• Meters – Standard Output Level: 0 VU (+4 dBu)
