Azden 3.5mm Female TRS to Mini-XLR Male Cable

Azden 3.5mm Female TRS to Mini-XLR Male Cable

SKU: AZDEN-MX-M2 Categories: , , ,

$20.00

Description

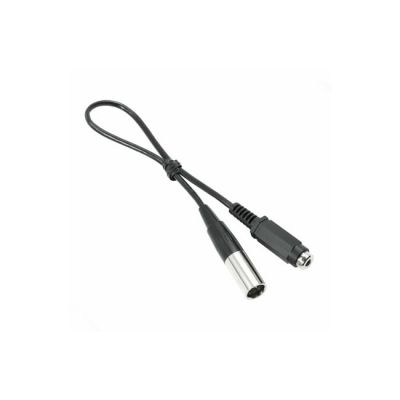

Azden 3.5mm Female TRS to Mini-XLR Male Cable

3.5 mm TRS Female to 3-pin Mini XLR Male.

Adapts unbalanced mini-plug audio output to balanced Mini XLR input.

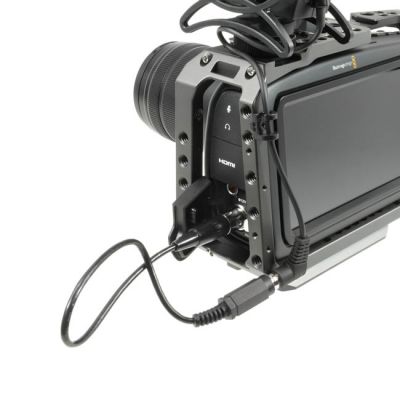

Connect your Azden microphone or wireless receiver to the pro-level Mini XLR audio input available on some small format cameras, such as the Blackmagic Pocket Cinema Camera 4K or 6K, with this female 3.5 mm TRS to male 3-pin Mini XLR adapter cable. Designed to adapt any unbalanced ā€œdual-monoā€ mini-plug microphone output to a balanced Mini XLR input. The MX-M2 is especially useful for any microphone or wireless receiver with a fixed 3.5 mm output cable. The MX-M2 is compatible with all Azden single-channel wireless receivers and all non-stereo, self-powered microphones.

This cable is not suitable for true stereo outputs with distinct left & right audio signals.

Compatible with single-channel Azden wireless receivers, includingĀ PRO-XR,Ā PRO-XRe,Ā PRO-XD,Ā andĀ WLX-PRO+i.

Compatible with non-stereo Azden self-powered video microphone, such asĀ SGM-990+i,Ā SMX-15,Ā SMX-30Ā andĀ SMX-30VĀ (when in mono mode).

Not compatible with lavalier microphones that require plug-in power.

  • Cable Length: 13.25ā€³(337 mm)
  • Overall Length: 14.50ā€³(369 mm)
  • Connectors: 3.5 mm TRS female phono jack / 3-pin male Mini XLR

Additional information

Weight1 kg
