Accusys SW16-G3 PCIe Switch – Final Sale/No Returns

Description

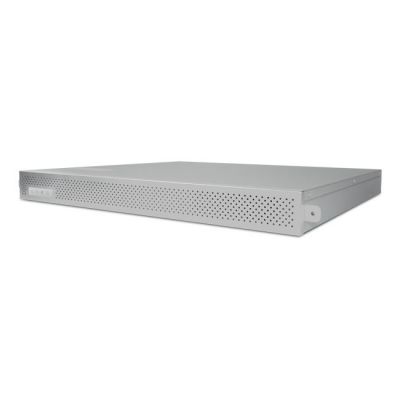

Accusys SW16-G3 PCIe Switch

Grow with Your Business, Scalability Made Simple

Powerful

The SW16-G3 is Accusys’ third generation PCIe switch. The newest addition to the world’s first and only PCIe SAN switch product line features PCIe 3.0 technology and includes 16 ports (12 client ports, 4 storage ports) enabling optimized scalability and large group collaborative workflows. With total performance reaching 10,000 MB/s and a storage capacity of up to 3,584 TB, the SW16-G3 is an essential for large workgroups in the rich media industry.

Large Workgroups

Collaboration is key with large projects and gut-wrenching time constraints. With the Primary-Secondary feature, users can combine two SW16-G3 switches, each offering 12 ports, to reach up to 24 clients. This translates optimized workflows and expedited projects.

10000 MB/s Higher Bandwidth, Higher Performance

Double the capabilities of its predecessor, PCIe 3.0 technology offers performance speeds of up to 10,000 MB/s. The SW16-G3 incorporates PCIe 3.0 technology with powerful hardware to empower uses with a robust storage solution that expedites heavy workloads.

Universal Compatibility

When your small workgroup increases with your growing business, you need to stay connected. The SW16-G3 is equipped with 12 client ports allowing for large workgroup collaboration while maintaining high performance. The SW16-G3 offers universal compatibility with devices utilizing MAC, Windows, Linux operating systems.

Massive Capacity

With four storage ports allocated for ExaSAN storage systems, the SW16-G3 enables simple scalability. By contacting four A16S3-PS each with three 16-bay JBOD units, users can reach a storage capacity of 3,584 TB (using 14TB HDD).

Technical Specifications

Hardware

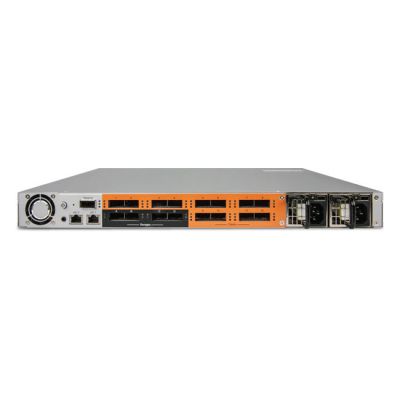

SW16-G3 Host and Disk Connections

• Supports 12 hosts with QSFP connector
• Supports 4 storages with QSFP connector Peripheral Connections
• 1 Gigabit Ethernet LAN Port for remote management
• Console port (phone jack) for RD debug usage

Processor and Cache memory

• Intel Atom processor
• DDR3-1333 MHz 2GB memory

Management

• Web-Based GUI, RAIDGuard X supports remote management andRAIDconfiguration
• LED indicator in front panel to show the access, fan, Network and power status
• LED indicator in each connector to show each access status
• Buzzer for system abnormal condition alarm

Software & Environment

• Supported SAN Management software
• MetaSAN, Xsan,BWFS etc…

Supported OS

• Windows 7, 8, 10, 2008 and 2012 (32/64bit)
• Linux:Red Hat, SUSE, Fedora, CentOS etc.
• MAC: OS X 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10.11 and 10.12

Electrical and Operating Requirement

• Redundant Power supply: 220W
• Humidity: 5% ~ 85% Non-condensing
• Operation Temperature: 0°C~40°C
• Sound pressure level when operating :45dB

Certification: RoHS, UL, CE, FCC, C-Tick, BSMI

Dimensions: L : 430 mm x W : 450 mm x H : 43mm

Weight: 6.3 Kg
