Description

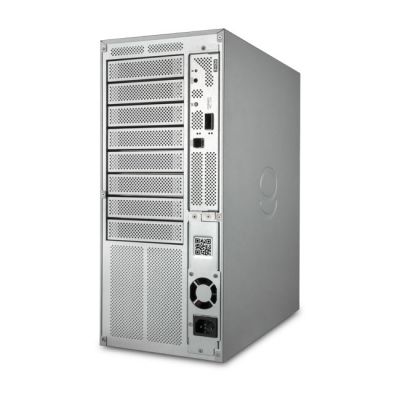

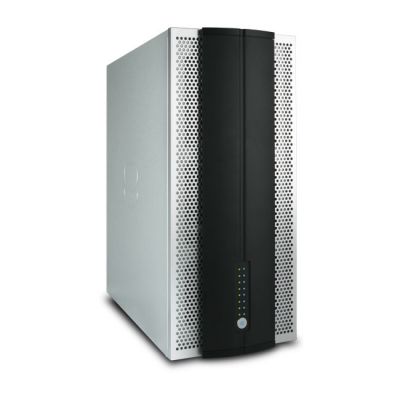

Accusys A08S4-PS 8-Bay PCIe 3.0 Tower RAID System
The Most Flexible Tower Ever, Expand as You Need
Powerful
A08S4-PS, the 8-bay tower of ExaSAN Family, dedicates itself to those who don’t want to spend extra money and time on a second storage. With ExaSAN, you can expand as you need.
Higher Bandwidth, Higher Performance
A08S4-PS uses PCIe 3.0 technology, and can reach up to 1500 MB/s transfer speeds. This works just perfectly for solo editing.
Expand as You Need

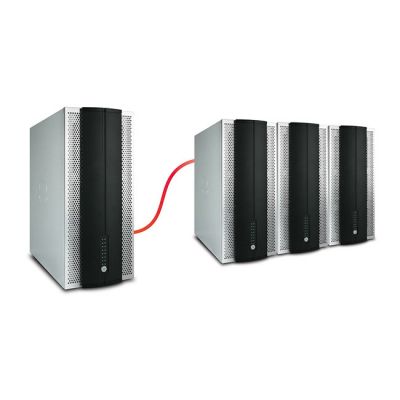

When your work space needs more than what a tower can offer, you can easily expend it with up to 3 JBODs – meaning the capacity can go up to 448 Terabytes if necessary (by using 14TB HDD).
A08S4-PS on Mac
A08S4-PS is compatible with Windows, Linux and MAC. Use C2M adapter to convert PCIe channel to Thuderbolt 3.0, then you are ready to connect it to a MAC device easily.
Technical Specifications
- System Type: 8-bay Tower RAID system
- Host Interface: PCIe 3.0
- Data Transfer Rate: 32 Gb/s
- Disk Interface: SAS / SATA * 8
- Disk Type: 3.5″ / 2.5″ / SSD
- RAID Level: 0, 1, 5, 6, 0+1, JBOD
- Cache Memory: 2G DDRlll 1866 with ECC-protected
- JBOD Expansion: JBOD * 3
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -20°C~ 70°C
- Operating Humidity : 5%~85%, Non-condensing
- RAID Controller Functions
- Online RAID Set Expansion and RAID LEVEL Migration
- Online bad block data recovery and reallocation
- Online disk scrubbing with data refresh and parity
- Disk health monitorning by S.M.A.R.T
- Array Roaming and Drive Traveling
- Mirror Snapshot for fast backup and restore
- Disk Lag Proof Technology to guarantee disk timely response
- Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
- Management
- Java-based RADIGuard X GUI
- Event log saving in text file for quick trobleshooting
- Event notification by email (SMTP)
- LED indicator for RAID & disk drives status in front
- 400W (Single or Redundant). 110V~240V power supply
- Two 12cm x 12 cm Fan with Smart Fan Control feature
Dimensions: L:369mm, W:175mm, H:394.6mm
Weight: 13.64kg / 30 lbs
