8Sinn Shoulder Rig Kit

Description

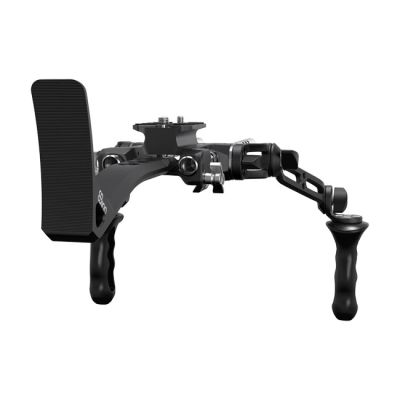

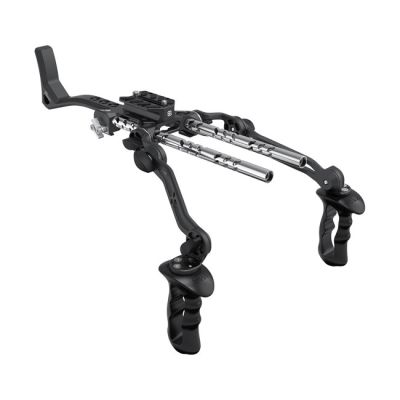

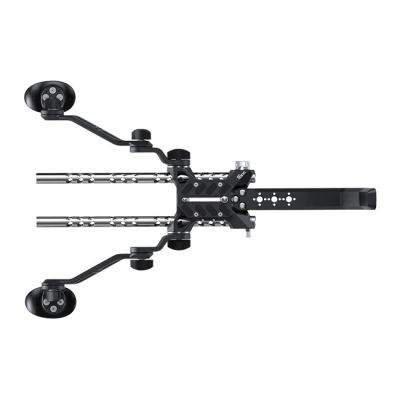

8Sinn Shoulder Rig Kit

Following kit includes:

One 8Sinn 15mm Baseplate + Riser Plate I

Two 8Sinn Side Arm for Shoulder Rigs + Dual Side Grip

One 8Sinn Shoulder Support

Optional Rods:

Two 8Sinn 30cm 15mm Silver Rods

Two 8Sinn 30cm 15mm Carbon Fiber Rods

Two 8Sinn 30cm 15mm Stainless Steel Rods

Baseplate features:

– 2 x 28mm Arri Rosettes

– 15mm rod compatible

– 3 x thumbscrews

– 4 x 1/4″ threaded openings

– 60mm center-to-center distance

– Dovetail guide rails (bottom)

Riser Plate I features:

– 2 x 1/4″ mounting screw

– 3/8″ mounting screw

– Rubber pads

– Aluminum made

Shoulder Support features:

– Aluminum made

– Lightweight

– 3 x 3/8″ Arri locating points

– Knurled rear surface

– Slender profile

– 1/4”-20 x1/2” (12mm) mounting screws

Rod Mount Bridge features:

– 15mm rod compatible

– 6 x 1/4″ threaded mounting points

– Aluminum made

– 60mm center-to-center distance

– Thumbscrew on each side

Compatibility:
Riser Plate I, included in this kit allows to obtain the optical center when used with the following cages:
8Sinn Z CAM E2-S6/F6/F8 Cage
8Sinn Z CAM E2 Cage
8Sinn Sony a7III / a7RIII Cage
8Sinn Sony A7RIV Cage
8Sinn BM Pocket Cinema Camera 4K / 6K Cage
8Sinn BM Pocket Cinema Camera 4K / 6K Half Cage
8Sinn Red Komodo Cage

Specifications

Weight: 1.070 kg (+ rods)
